30W 600-700MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding With GAN and Isolation Protector

Product Categories
JinYaTong Technology(china) Co., Ltd
Contact Now

30W 600-700MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding With GAN and Isolation Protector

Brand Name : OEM/ODM

Model Number : JYT-M600-30

Certification : CE

Place of Origin : China

MOQ : 1Pc

Price : Negotiate

Payment Terms : T/T

Delivery Time : 1-3 working days after payment received

Packaging Details : Neutral Package

Contact Now

Product Parameters

30W 600-700MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding With GAN and Isolation Protector

Main Components :

1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

4, Tube Voltage 5, Adjustable GAN Voltage 6, GAN Voltage

1.RF Data

Item Spec. Remarks
Frequency Range(MHz) 600-700 Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Analog sweeping speed 250KHz
Output Power (Max) ≥44dBm 30W
Gain (Max) 47±1 dB
Ripple in Band ≤ 3dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Yes 24-28V
Output VSWR ≤3
Working current@+28V dc ≤3A
High Low Temperature test Working Temperature -20~＋65℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Power supply Port Positive and negative lines 24-28V; GND
RF output connector SMA-Female
LED indicator light Power ON/OFF
Dimension 117*40*18 mm
Installation Dimension 112*35*18 mm
Screw Size 4-Ø3.20 mm
Weight 180g

2.Size

30W 600-700MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding With GAN and Isolation Protector

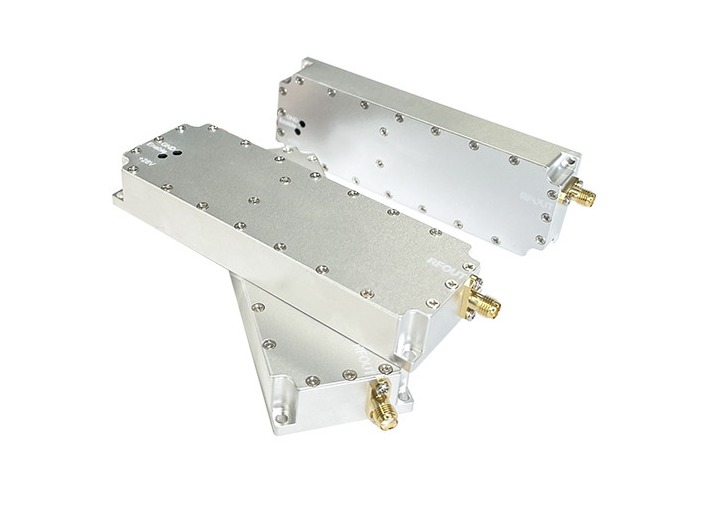

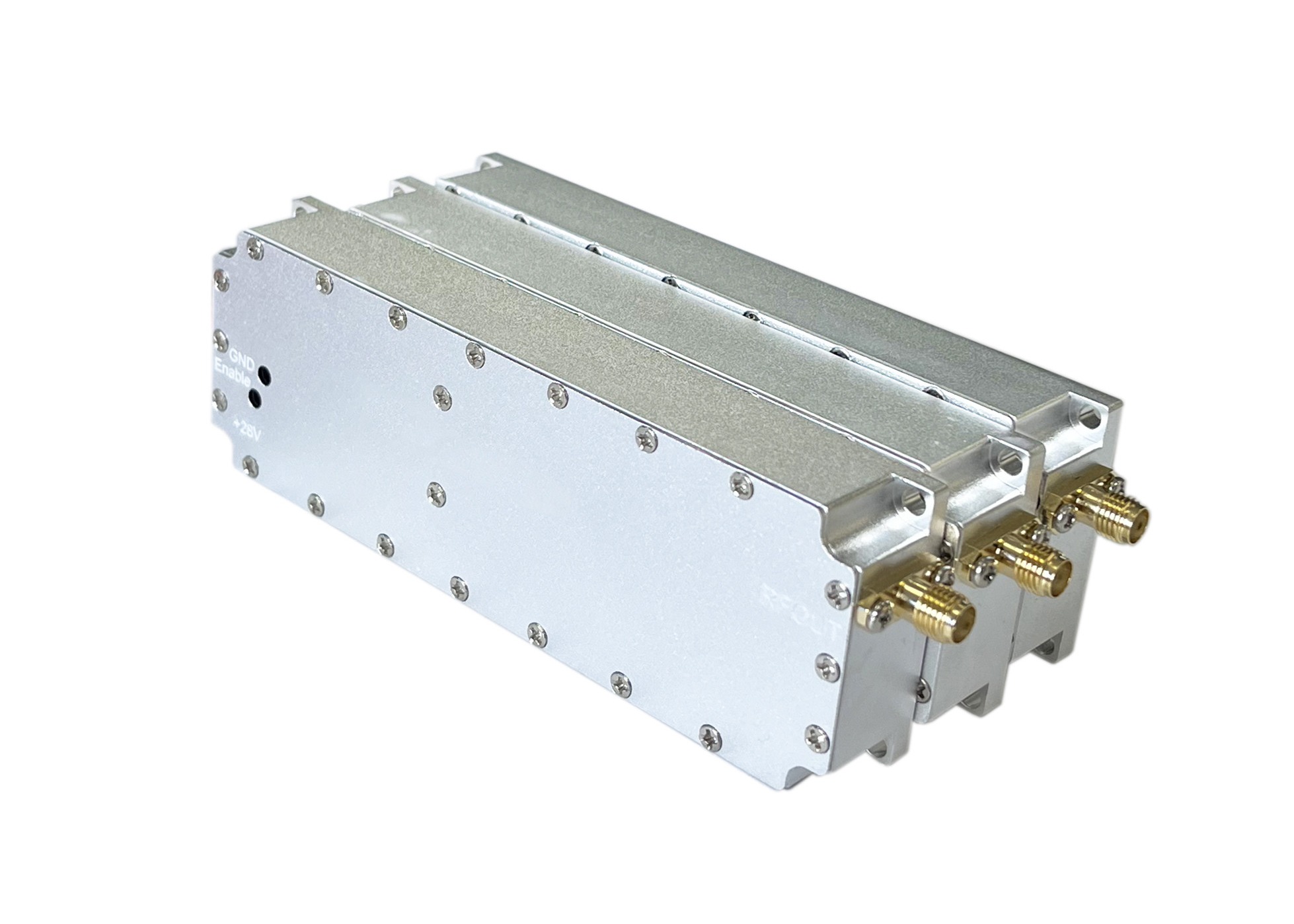

Detailed Photos

30W 600-700MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding With GAN and Isolation Protector30W 600-700MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding With GAN and Isolation Protector30W 600-700MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding With GAN and Isolation Protector

30W 600-700MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding With GAN and Isolation Protector

Spectrum data


30W 600-700MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding With GAN and Isolation Protector

30W 600-700MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding With GAN and Isolation Protector

30W 600-700MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding With GAN and Isolation Protector

For more details,Please don't hesitate to send us your inquiry.
