800-950MHz 30W RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv Drone With GAN And Isolation Protector

JinYaTong Technology(china) Co., Ltd
Contact Now

800-950MHz 30W RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv Drone With GAN And Isolation Protector

Brand Name : OEM/ODM

Model Number : JYT-M800-30

Certification : CE

Place of Origin : China

MOQ : 1Pc

Price : Negotiate

Payment Terms : T/T

Delivery Time : 1-3 working days after payment received

Packaging Details : Neutral Package

Contact Now

Product Parameters


800-950MHz 30W RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv Drone With GAN And Isolation Protector

Main Components :

1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

4, Tube Voltage 5, Adjustable GAN Voltage 6, GAN Voltage

1.RF Data

Item Spec. Remarks
Frequency Range(MHz) 800-950 Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Analog sweeping speed 250KHz
Output Power (Max) ≥44dBm 30W
Gain (Max) 47±1 dB
Ripple in Band ≤ 3dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Yes 24-28V
Output VSWR ≤3
Working current@+28V dc ≤3A
High Low Temperature test Working Temperature -20~+65℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Power supply Port Positive and negative lines 24-28V; GND
RF output connector SMA-Female
LED indicator light Power ON/OFF
Dimension 117*40*18 mm
Installation Dimension 112*35*18 mm
Screw Size 4-Ø3.20 mm
Weight 180g

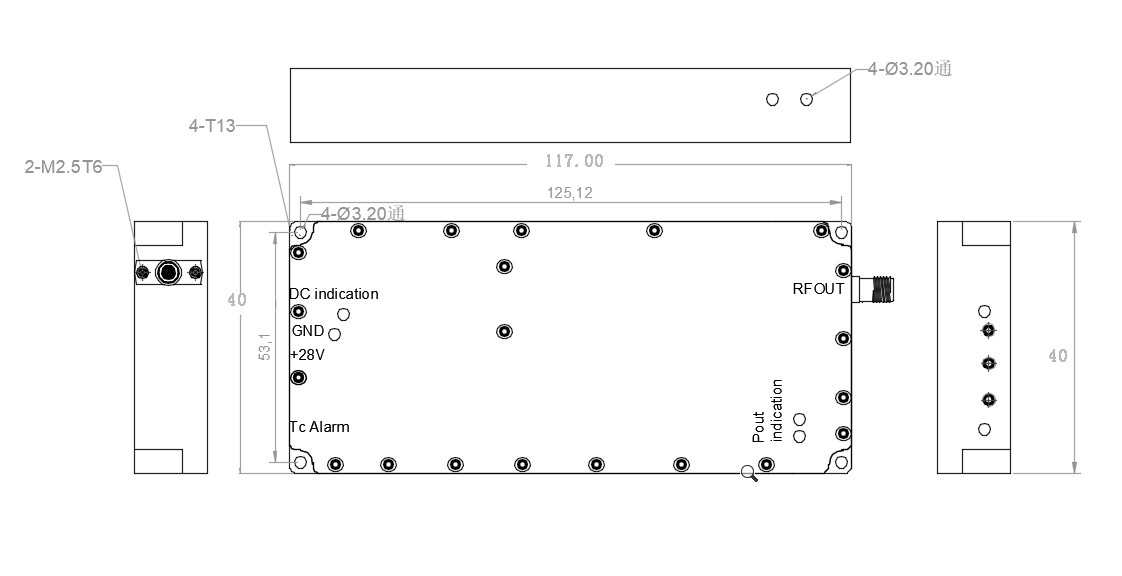

2.Size

800-950MHz 30W RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv Drone With GAN And Isolation Protector

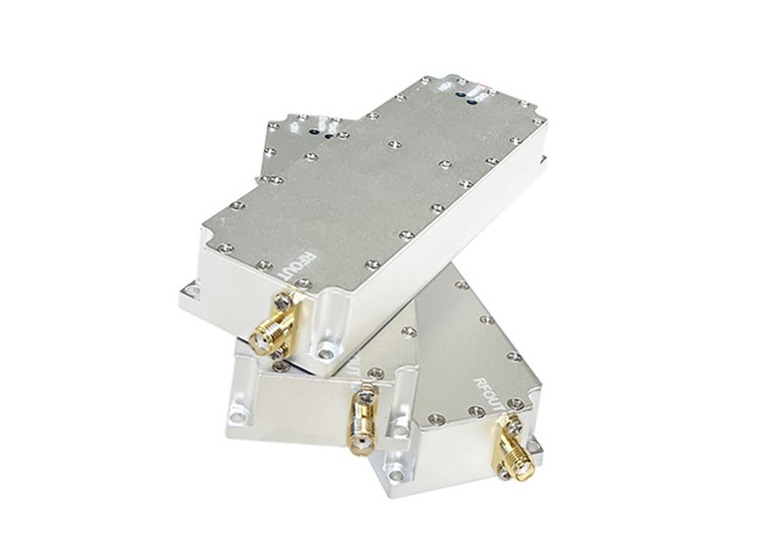

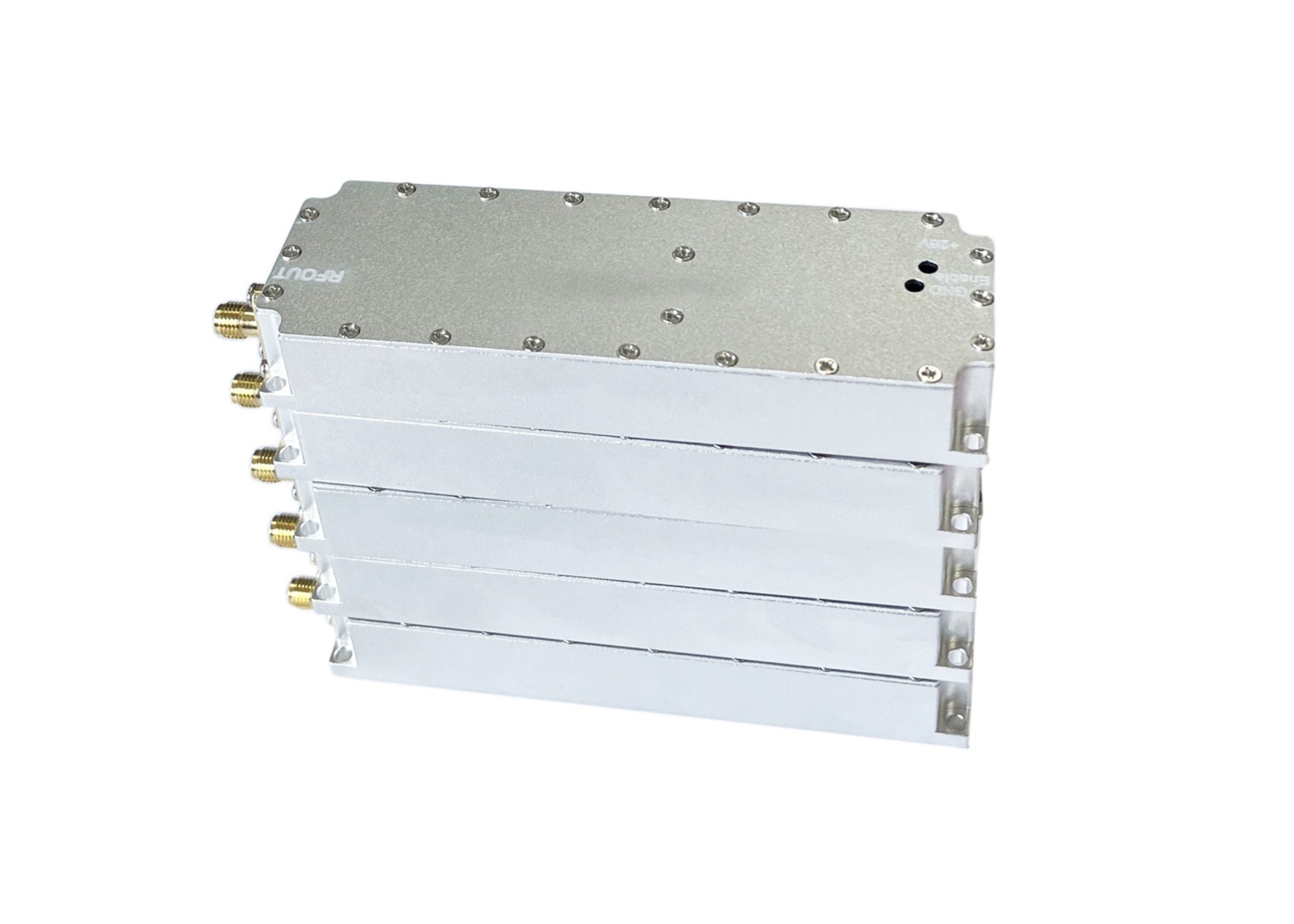

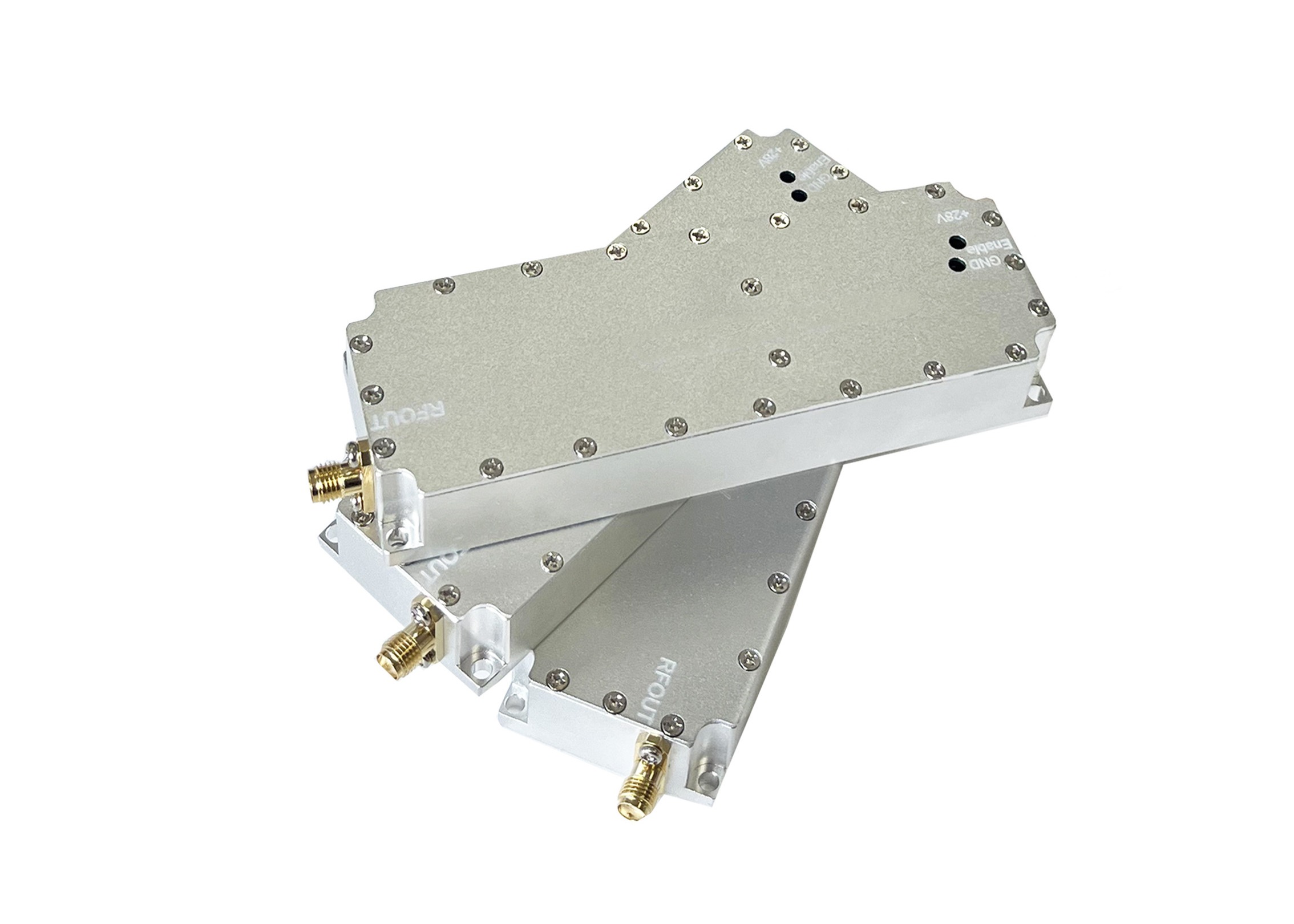

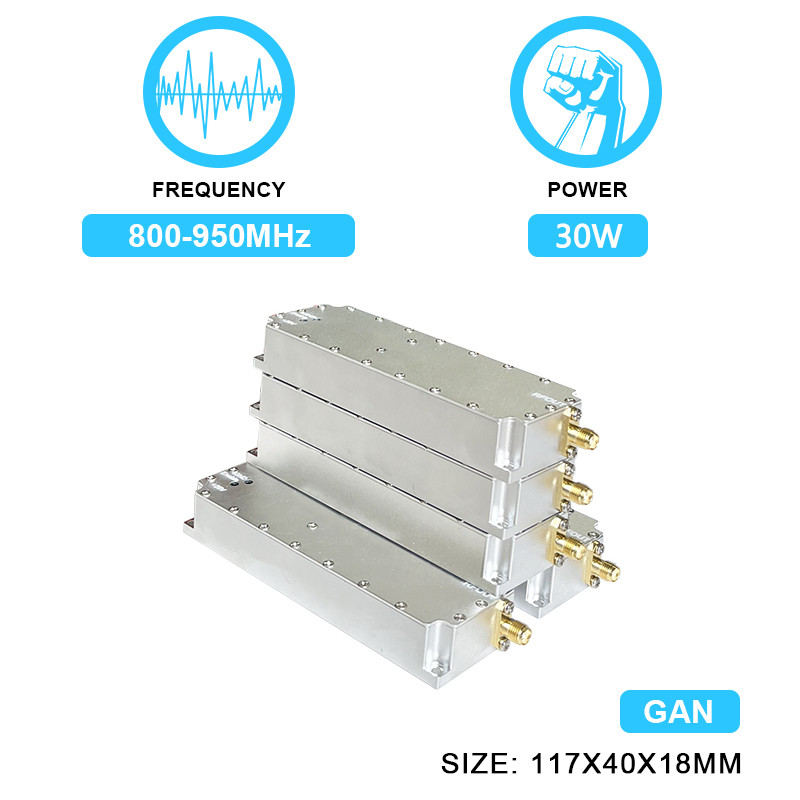

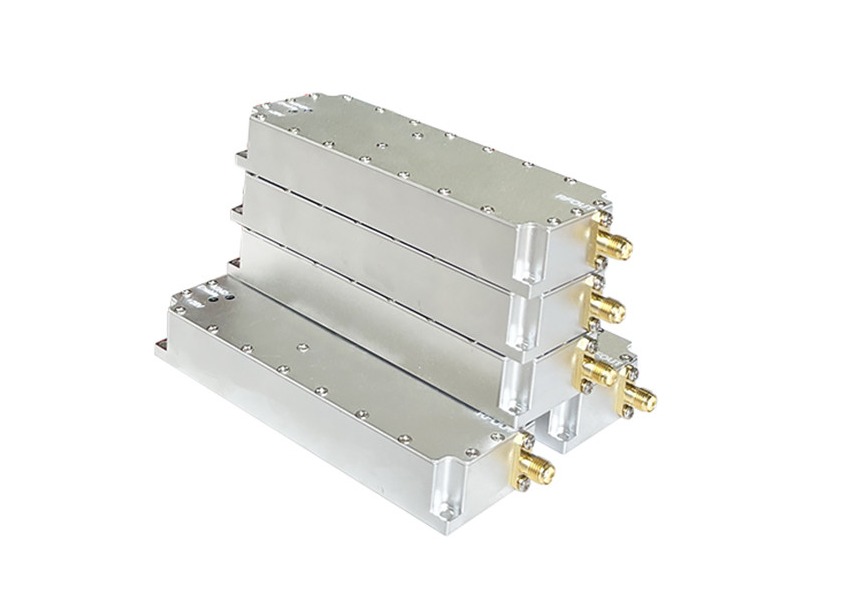

Detailed Photos

800-950MHz 30W RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv Drone With GAN And Isolation Protector

800-950MHz 30W RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv Drone With GAN And Isolation Protector

800-950MHz 30W RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv Drone With GAN And Isolation Protector

800-950MHz 30W RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv Drone With GAN And Isolation Protector

800-950MHz 30W RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv Drone With GAN And Isolation Protector

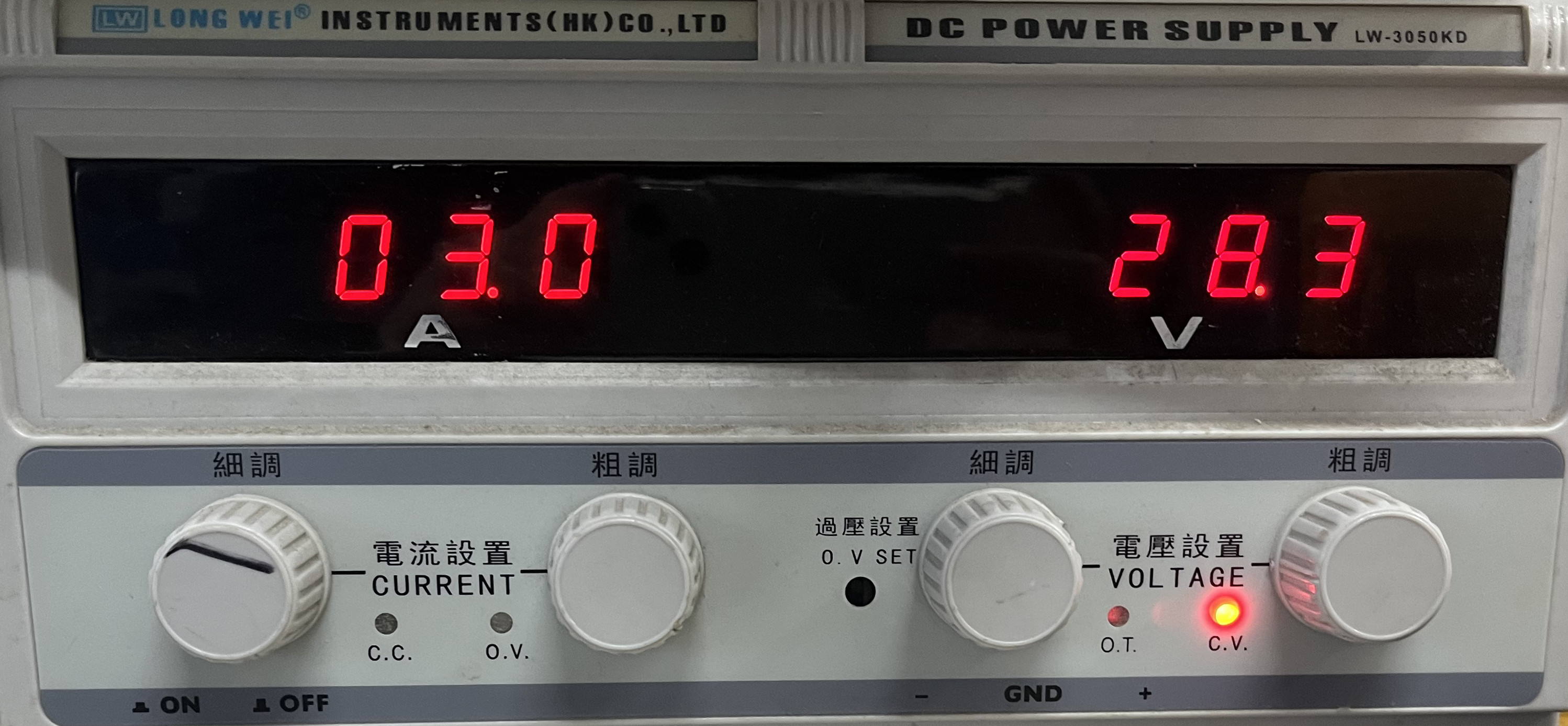

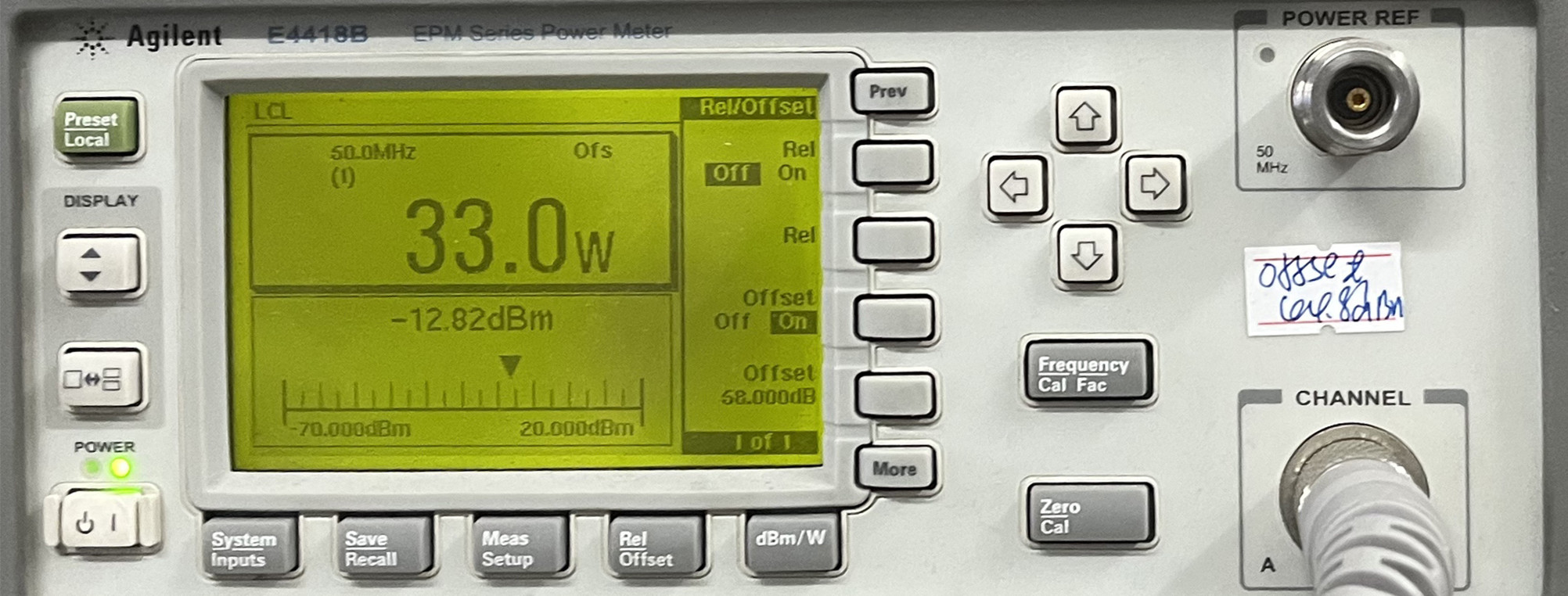

Spectrum data


800-950MHz 30W RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv Drone With GAN And Isolation Protector

800-950MHz 30W RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv Drone With GAN And Isolation Protector

800-950MHz 30W RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv Drone With GAN And Isolation Protector

For more details,Please don't hesitate to send us your inquiry.
