8 Antennas Portable Mobile Phone Signal Jammer with Bigger Hot Sink & Battery Blocks 2G 3G 4G 5G WIFI signals
This 8 antennas multifunctional hand-held portable cell phone jammer is the private design of JinYaTong Technology , designed with 3 models '820A','820B' and '820C' for your option .
1: JYT-820A Mobile Phone2G.3G .4G.GPSL1.WIFI
2: JYT-820B Mobile Phone2G.3G .4G.GPSL1. WIFI. LOJACK
3: JYT-820C Mobile Phone2G.3G .4G. 5G.WIFI.
This cell phone jammer meets your blocking needs for the most common affected frequency types.
And the handheld design makes it easy to carry.
Inside cooling fans and Bigger heatsink design ensure the device to work continuously
Parameters:
Output Power: 8W
Power supply: AC110-240V to DC12V
Full set Weight: 2.0KG
Size: 156*81*48(not include Antennas)
Length of antenna : 166mm Gain:2.0dbi
Shielding Radius: 10-20meters (depends on the signal strength in the given area)
Battery:Built-in battery 7.4V/4600mAh
Working Time:2 Hours
Cooling System: High efficiency aluminum alloy radiator, Build-in 1x cooling fan
Specifications:
Cover interface standards:
JYT-820A
Band 1:CDMA:850 to 894MHz
Band 2:GSM: 925 to 960MHz
Band 3:DCS&:PCS: 1,805 to 1990MHz
Band 4:3G: 2,110 to 2,170MHz
Band 5:GPSL1:1,570 to 1,580MHz
Band 6: WIFI:2,400 to 2,500MHz
Band 7:4G LTE:738 to 821MHz
Band 8:4G Wimax:2,620 to 2,690MHz
JYT-820B
Band 1:CDMA&GSM:850 to 894MHz
Band 2:DCS&:PCS: 1,805 to 1,990MHz
Band 3:3G: 2,110 to 2,170MHz
Band 4:GPSL1:1,570 to 1,580MHz
Band 5: WIFI:2,400 to 2,500MHz
Band 6:4G LTE:738 to 821MHz
Band 7:4G Wimax:2,620 to 2,690MHz
Band 8:LOJACK:165 to 174MHz
JYT-820C
Band 1:CDMA&GSM:850 to 960MHz
Band 2:DCS&:PCS: 1,805 to 1,990MHz
Band 3:3G: 2,110 to 2,170MHz
Band 4:4G LTE:738 to 821MHz
Band 5:4G Wimax:2,620 to 2,690MHz
Band 6:5G1:3,400 to 3,600MHz
Band 7:5G2:3,600 to 3,800MHz
Band 8:WIFI:2,400 to 2,500MHz
We can also customize the frequencies according to different requirements,Please feel free to contact us anytime!
Feature and Advantages:
1.ODM and OEM orders are welcome
2.Small size design,easy to cary.
3.Support the adjust or turn off of any single band without influencing the other bands's operation.
4.The shileding distance up to 20m, Depends on the signal strength in a given area.
5.External Omni-directional antennas all the TX frequency covered down link only
6.With AC adapter (AC110-240V-DC12V),7.4v 4600Mah battery,Working time up to 2 hours.
7.Silkscreen OEM service can be offered.
Application:
1.It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more;
2.For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
Warranty: one year from delivery date
For more details,please do not hesitate to send us an enquiry.
|
|

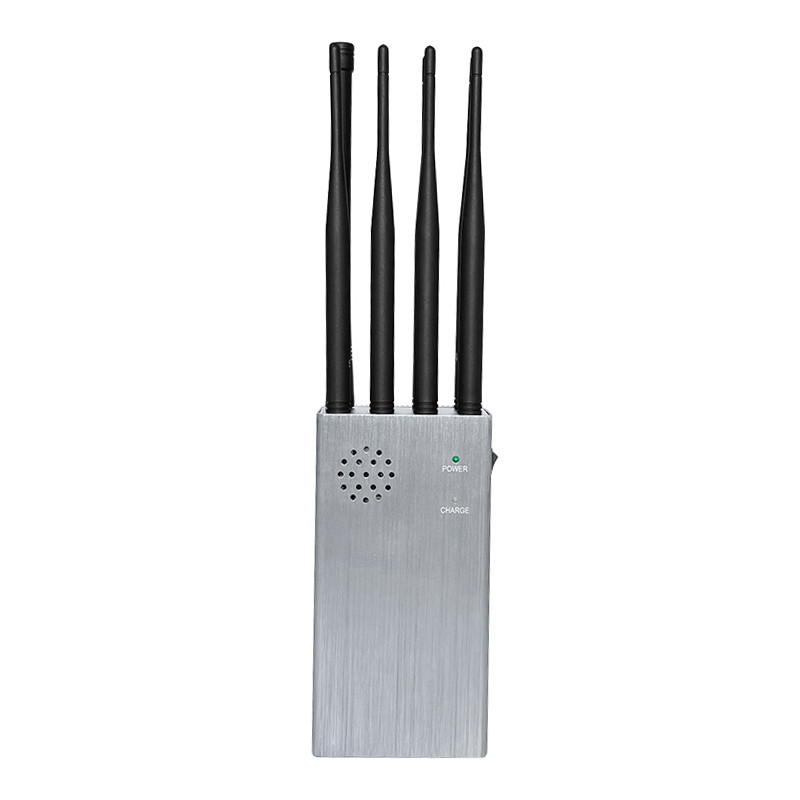

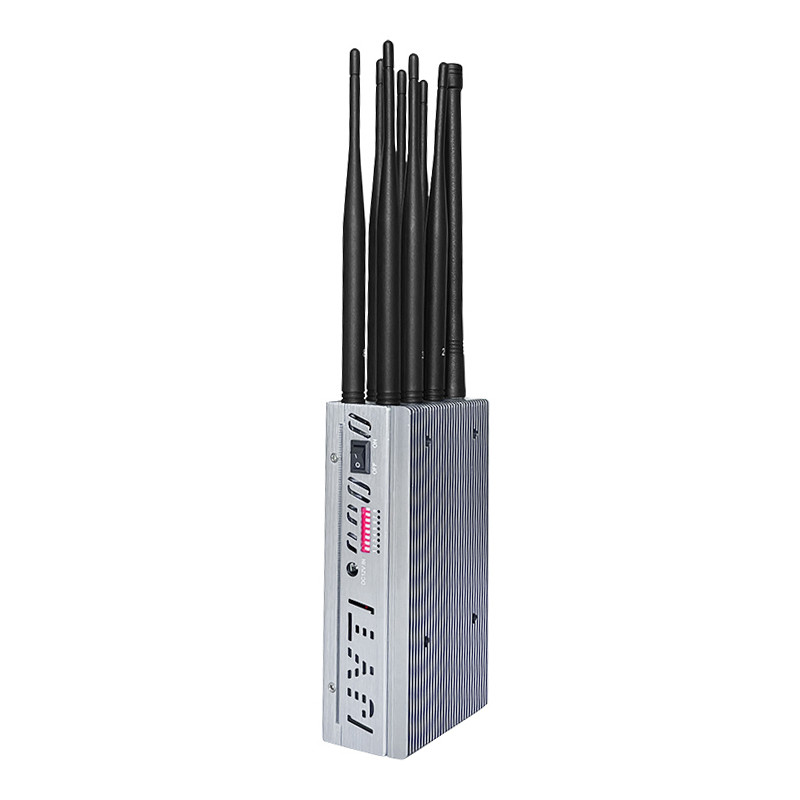

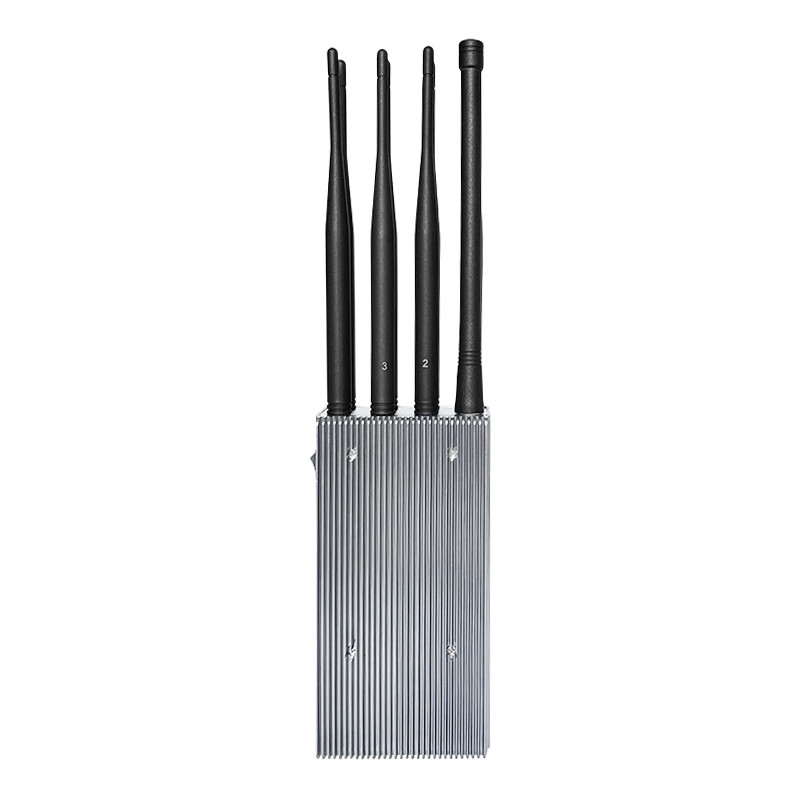

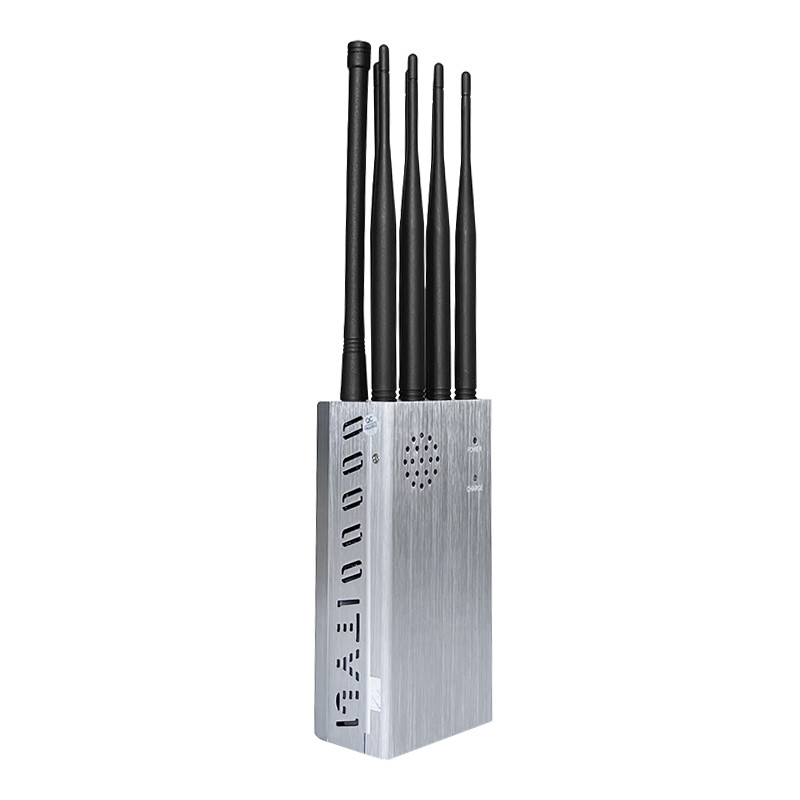

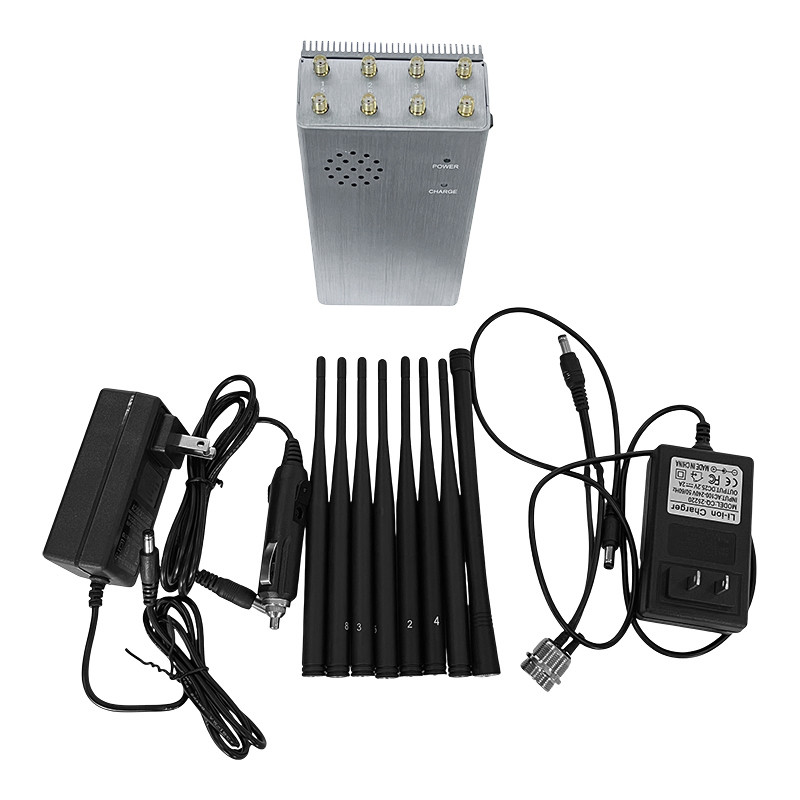

8 Antennas Portable Mobile Phone Signal Jammer with Bigger Hot Sink & Battery Blocks 2G 3G 4G 5G WIFI signals Images
|
