3 Antennas Portable Signal Jammer Blocks 315MHz,433/434MHz,868MHz Signals, Coverage Range Up To 200 Meters.
This high-power handheld jammer is the latest design of Jinyatong Technology.
As the world's first high-power handheld jammer, this product has an output power of up to 10W per channel and blocks 315,433/434,868 frequencies, designed to meet your target of most general types of remote control frequencies.
And the high power therefore large jamming coverage of the product up to 200 meters.
Specifications:
Cover interface standards:
JYT-RF300
Band 1: 433/434MHz 10W
Band 2: 868MHz 10W
Band 3: 315MHz 10W
Parameters:
Output Power: 30W
Power supply: AC adapter (AC100V240V-DC29.4V-2A)
Full set Weight: 2.12KG
Size: 225*110*55mm (without antenna)
Shielding Radius: 200 meters (depends on the signal strength in the given area)
Battery: Built-in lithium battery 29.4v 5000mAh
Working Time:5 consecutive hours
Cooling System: Inside adopts an integrated design of anti-oxidation aluminum alloy shell and heat sink. Outside 2 high-speed silent fans on the host to ensure the stable operation of the jammer.
Feature and Advantages:
1. Large coverage, Covers all 315MHz. 433/434MHz.868Mhz signals, and the interference range is up to 200 meters.
2. High-power RC signals jammer, with output power up to 10W per channel.
3. Good cooling system: Inside adopts an integrated design of anti-oxidation aluminum alloy shell and heat sink. Outside 2 high-speed silent fans on the host to ensure the stable operation of the jammer.
4. Electric Filed (SAR): Compatible with ICNIRP Standards (Human safe).
5. Designed with an anti-interference display screen that can display power, current, and voltage.
6. Slow start circuit design effectively avoids sparks during startup.
7. It uses high-performance integrated circuits and patch components, and apply imported patch machines and reflow soldering machines for processing and casting production, for the stable quality and performance.
8. Adops high gain antenna +3dbi.
9. Built-in lithium battery 29.4v 5000mAh, can work for about five hours.
10. Total output power: >30W
11. Package weight: 3KGS
Application:
All kinds of remote control equipment.
Warranty: one year from delivery date.
For more details,please do not hesitate to send us an enquiry.
|
|

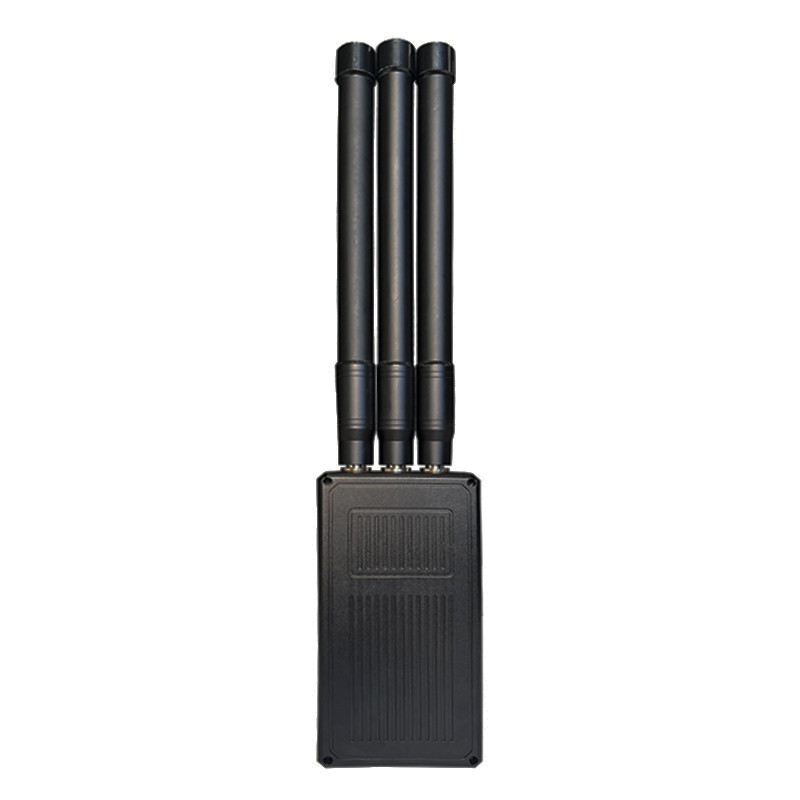

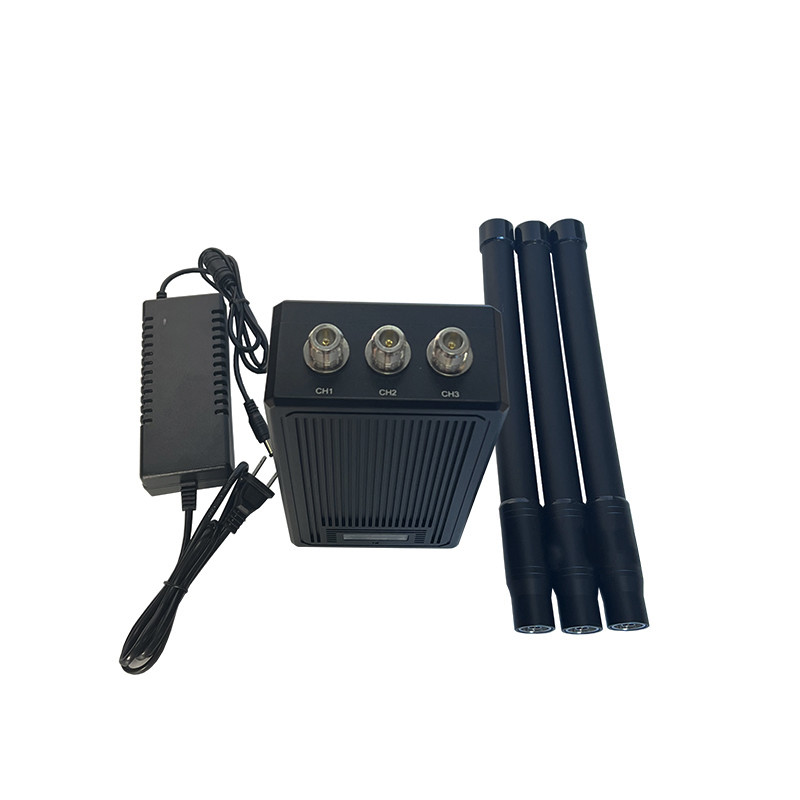

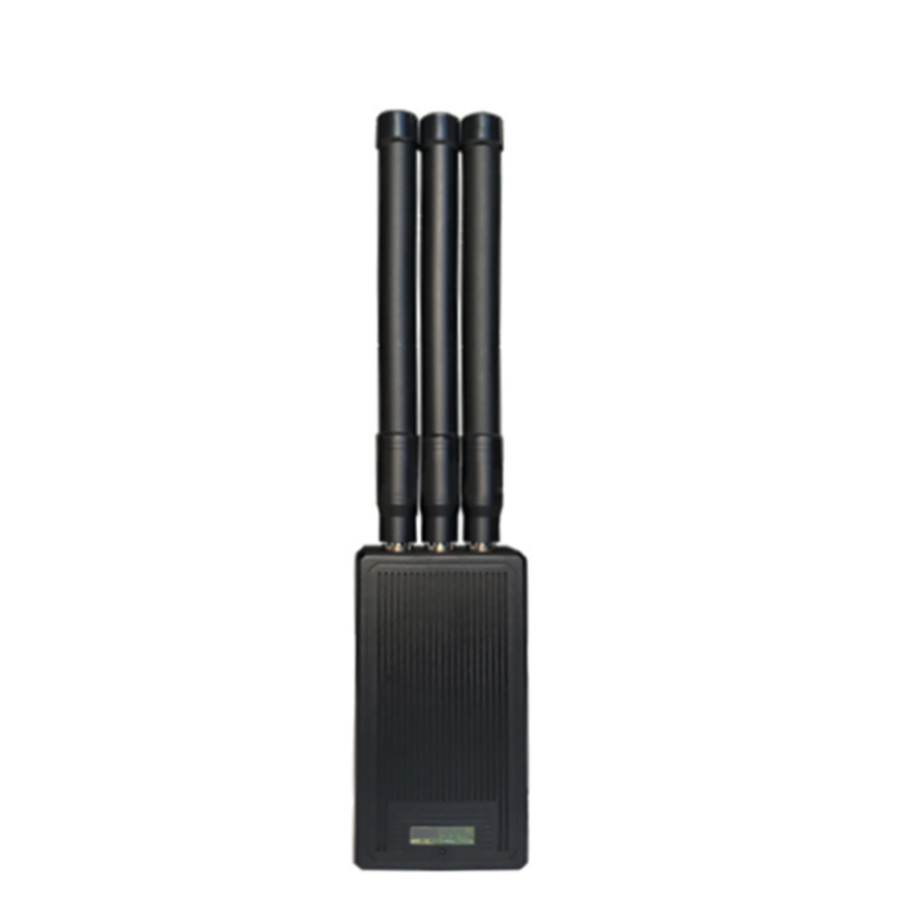

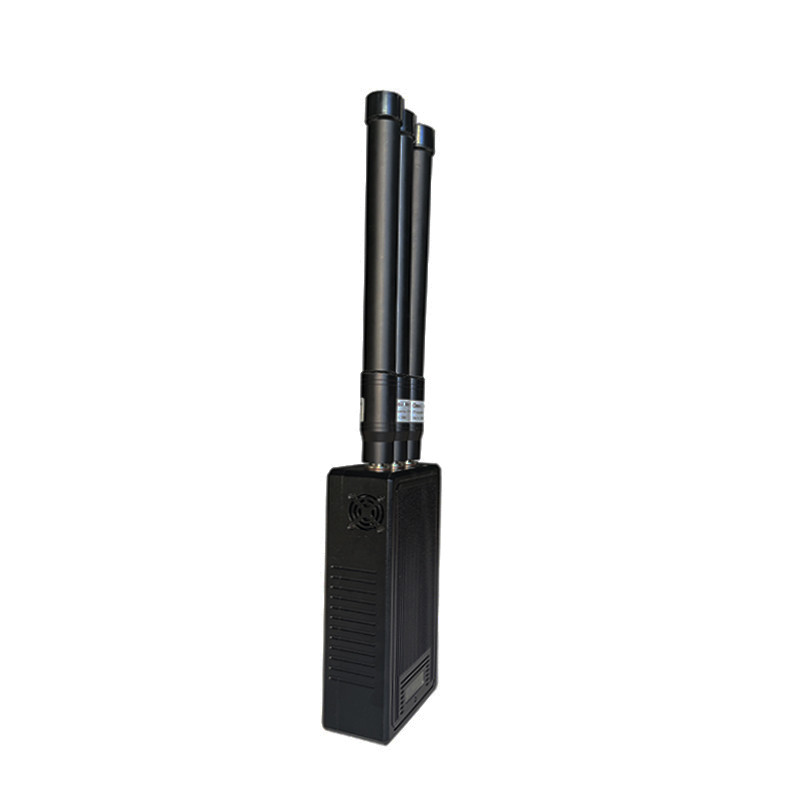

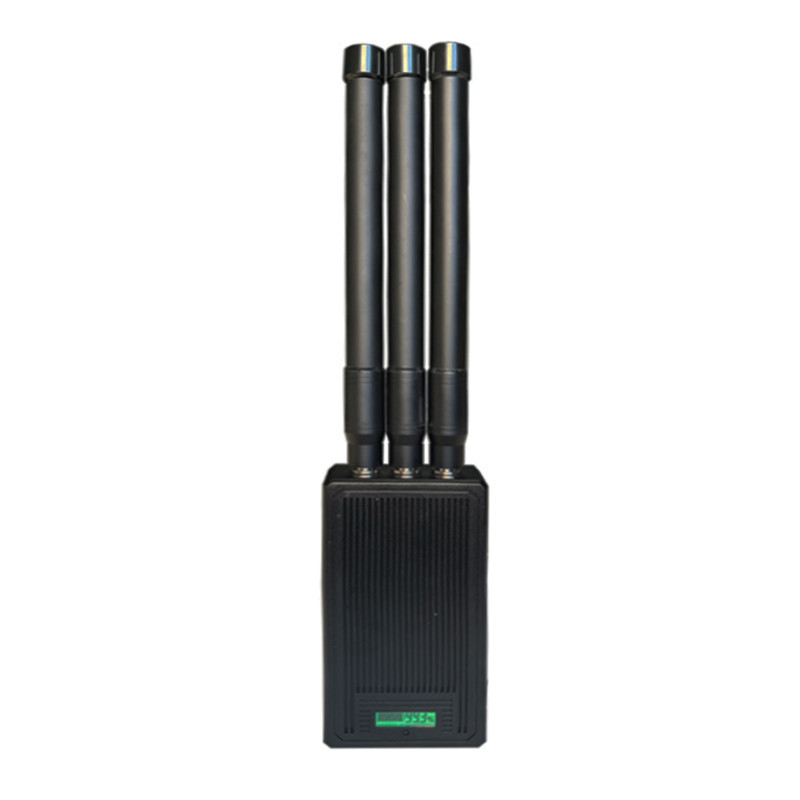

3 antennas portable signal jammer blocks 315MHz,433/434MHz,868MHz signals, coverage range up to 200 meters. Images
|
