Fpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation Protector

Product Categories
JinYaTong Technology(china) Co., Ltd
Contact Now

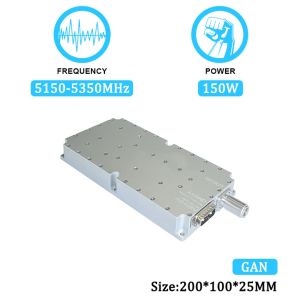

Fpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation Protector

Brand Name : OEM/ODM

Model Number : JYT-G5.2-150

Certification : CE

Place of Origin : China

MOQ : 1Pc

Price : Negotiate

Payment Terms : T/T

Delivery Time : 1-3 working days after payment received

Packaging Details : Neutral Package

Contact Now

Product Parameters

Fpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation Protector

Main Components :

1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

4, Tube Voltage 5, Adjustable GAN Voltage 6, GAN Voltage

1.RF Data

Item Spec. Remarks
Frequency Range(MHz) 5150-5350 Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Analog sweeping speed 150KHz
Output Power (Max) ≥52dBm(150W) 100W
Gain (Max) 50±1 dB
Ripple in Band ≤ 5dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Yes 0V-OFF/5V-ON
Output VSWR ≤3
Working current@+28V dc ≤14A
High Low Temperature test Working Temperature -20~＋65℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Power supply Port Port 7W2 A1:GND 24-28V; GND
A2:+28V 24-28V; GND
PIN3:Enable control,0V-OFF/5V-ON
PIN1,2,4,5 NC
RF output connector SMA-Female
LED indicator light Power ON/OFF
Dimension 200*100*25 mm
Installation Dimension 96*96*92*25 mm
Screw Size 6-Ø3.20 mm
Weight 900g

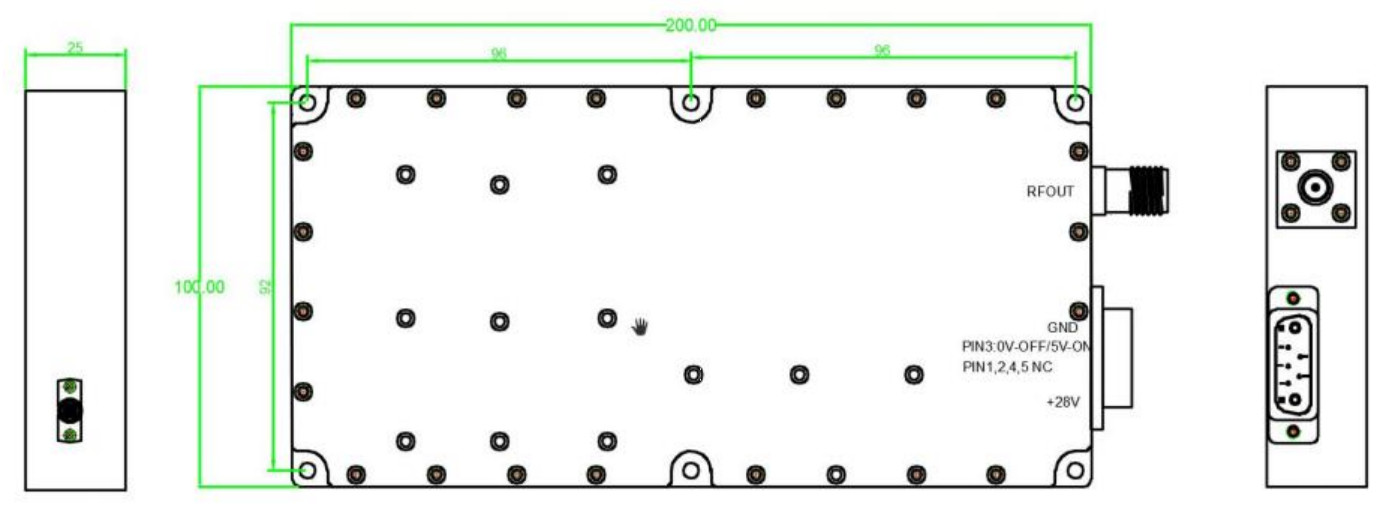

2.Size

Fpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation Protector

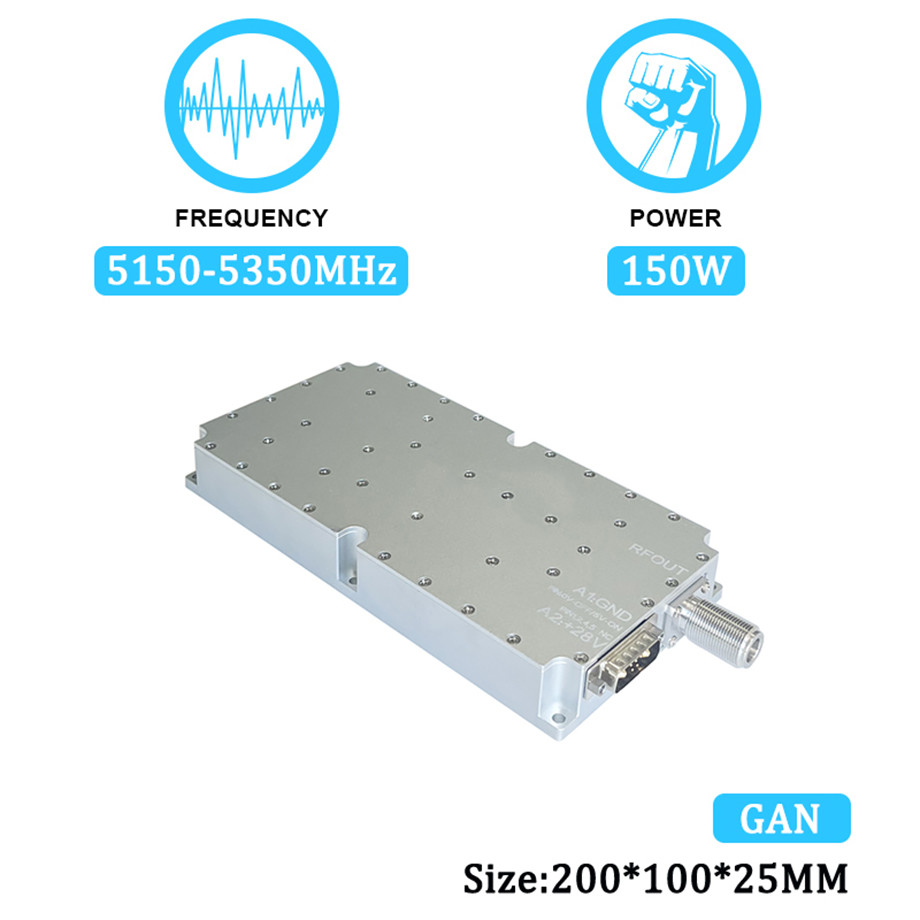

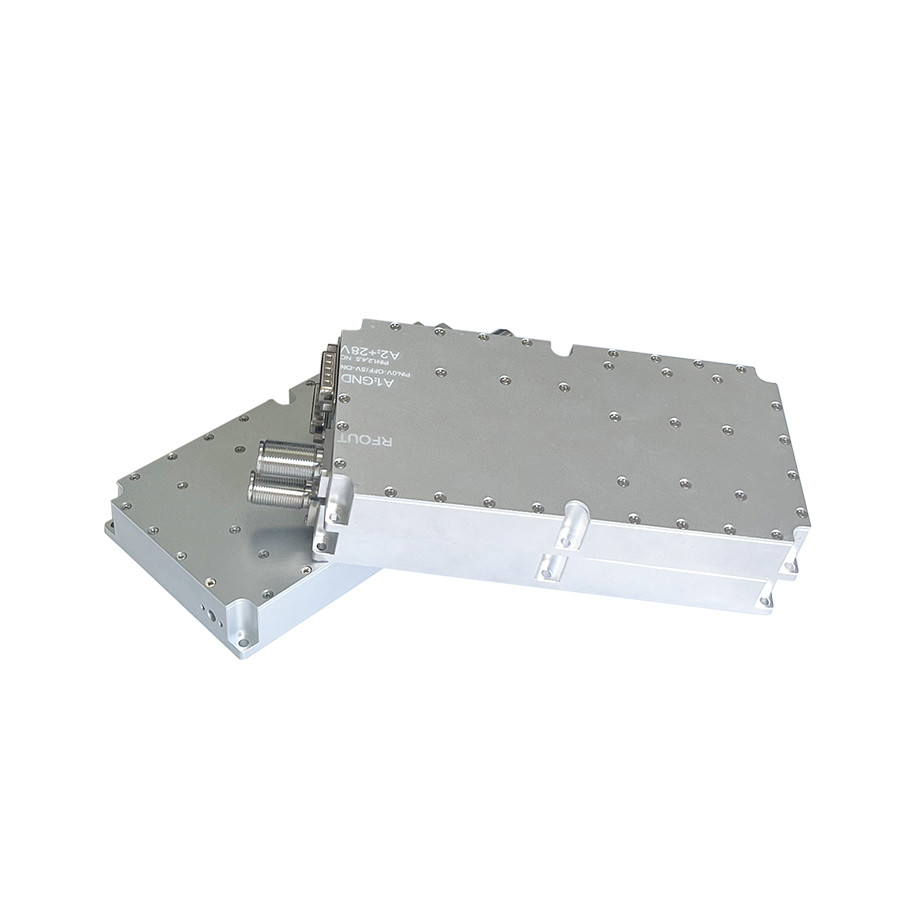

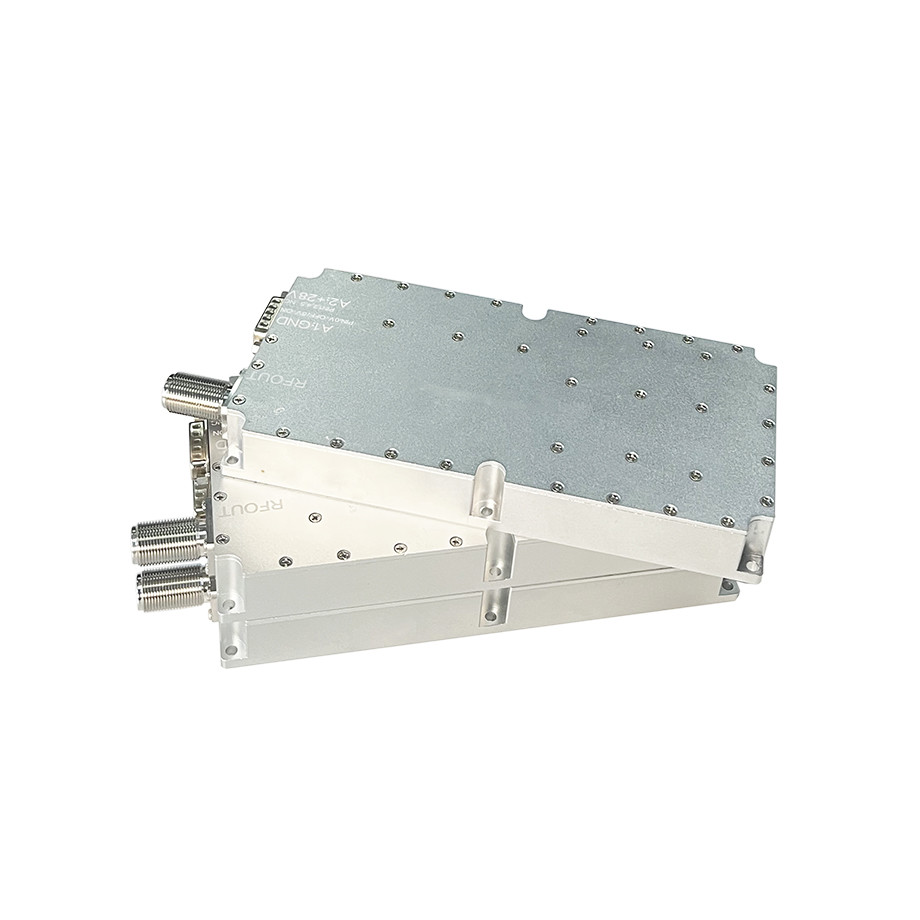

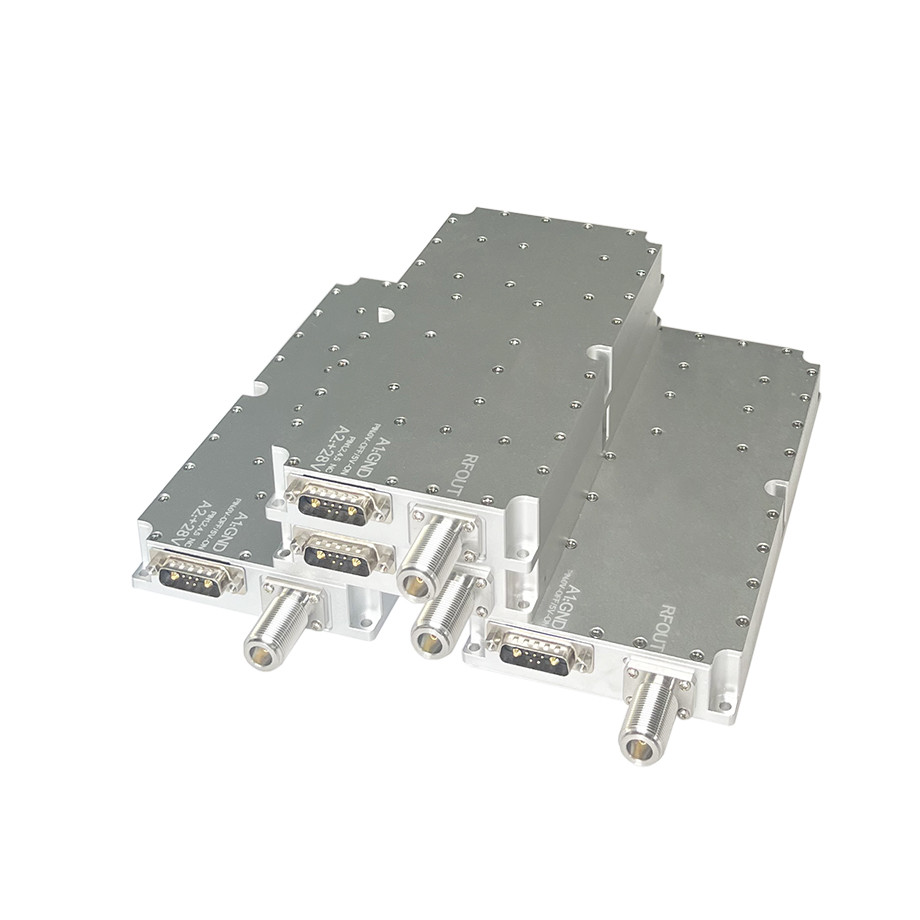

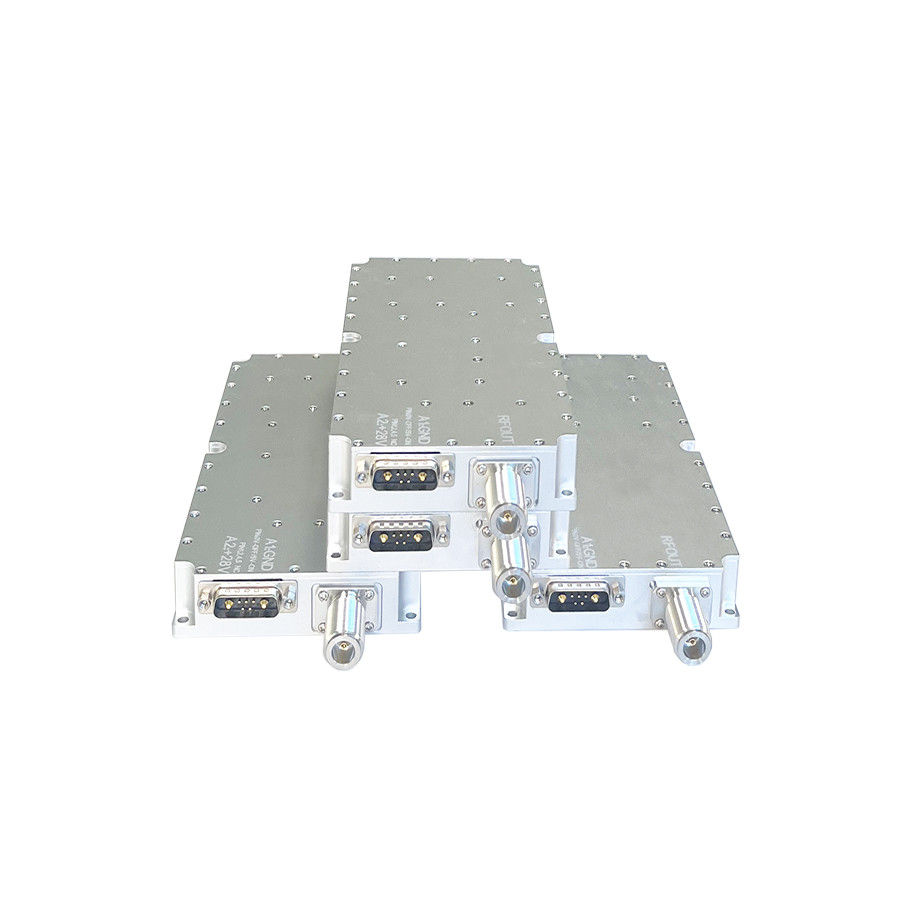

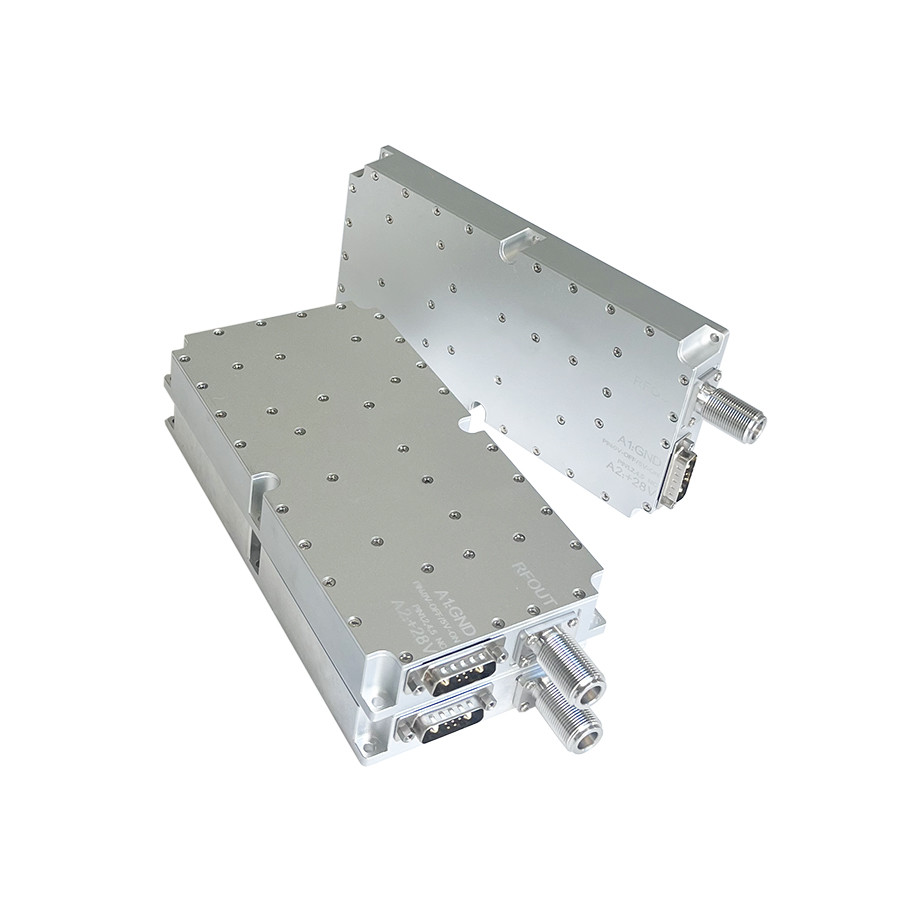

Detailed Photos

Fpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation ProtectorFpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation ProtectorFpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation ProtectorFpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation Protector

Fpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation Protector

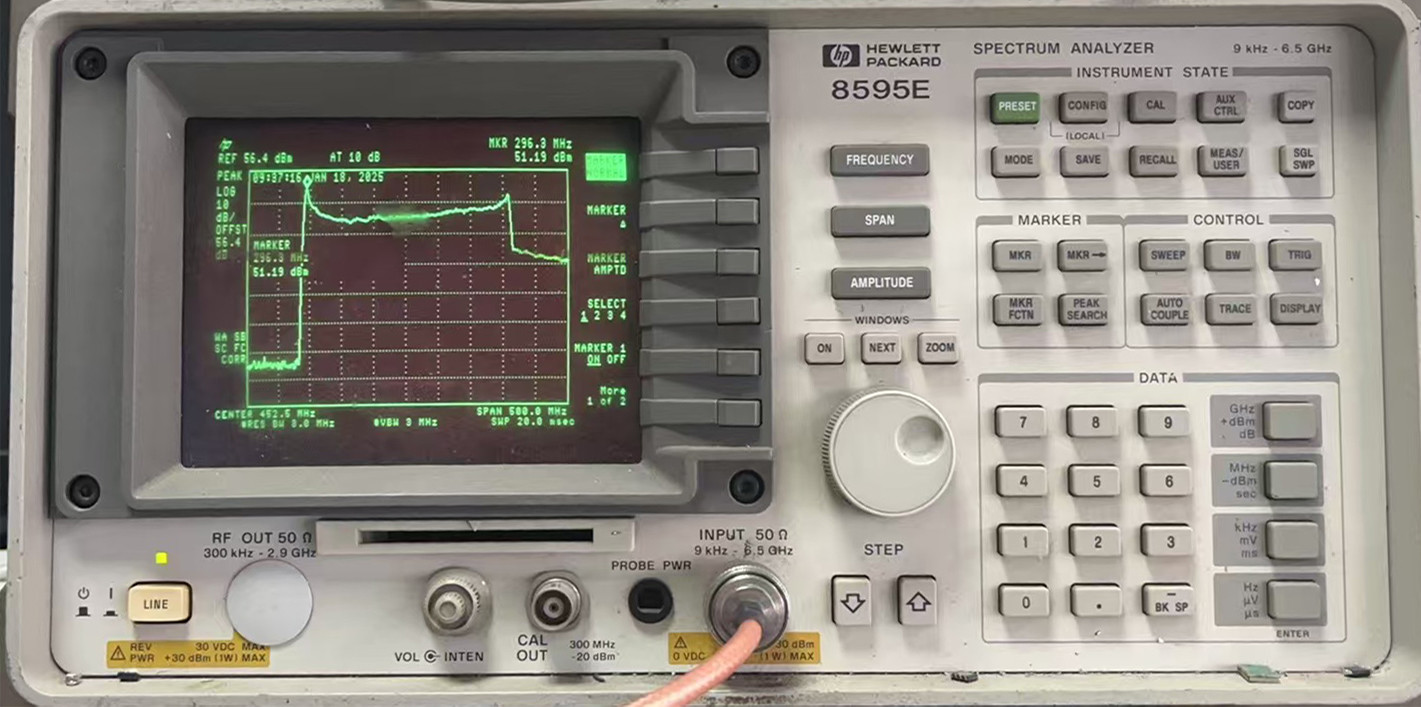

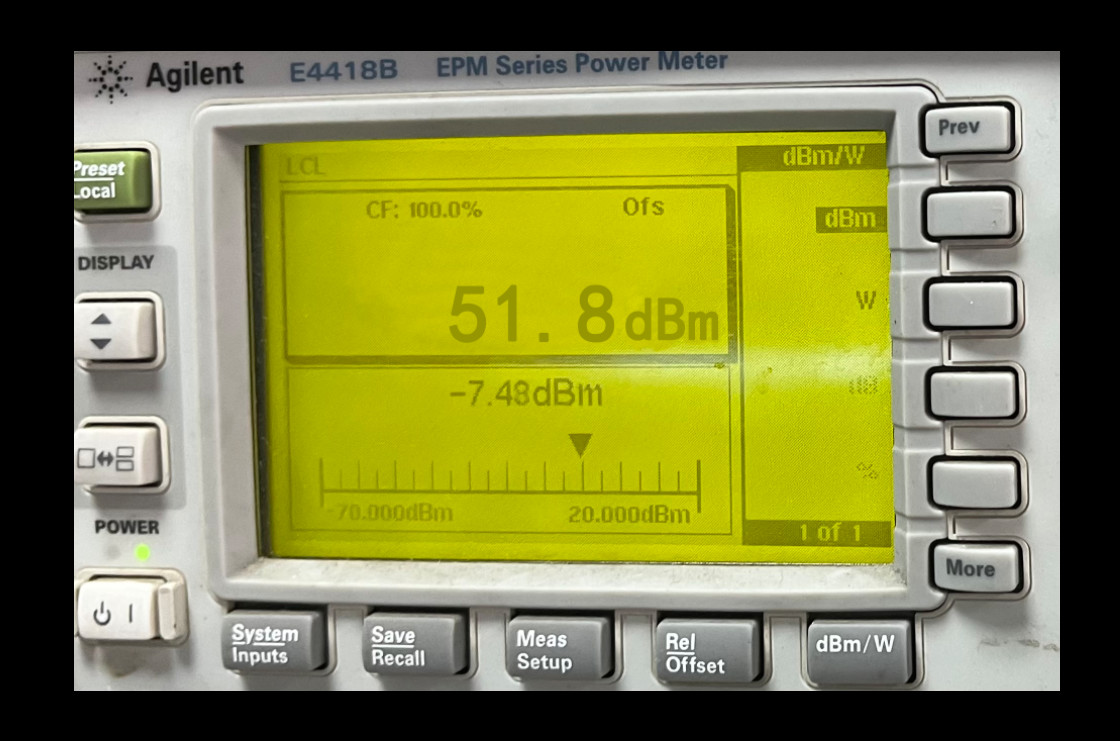

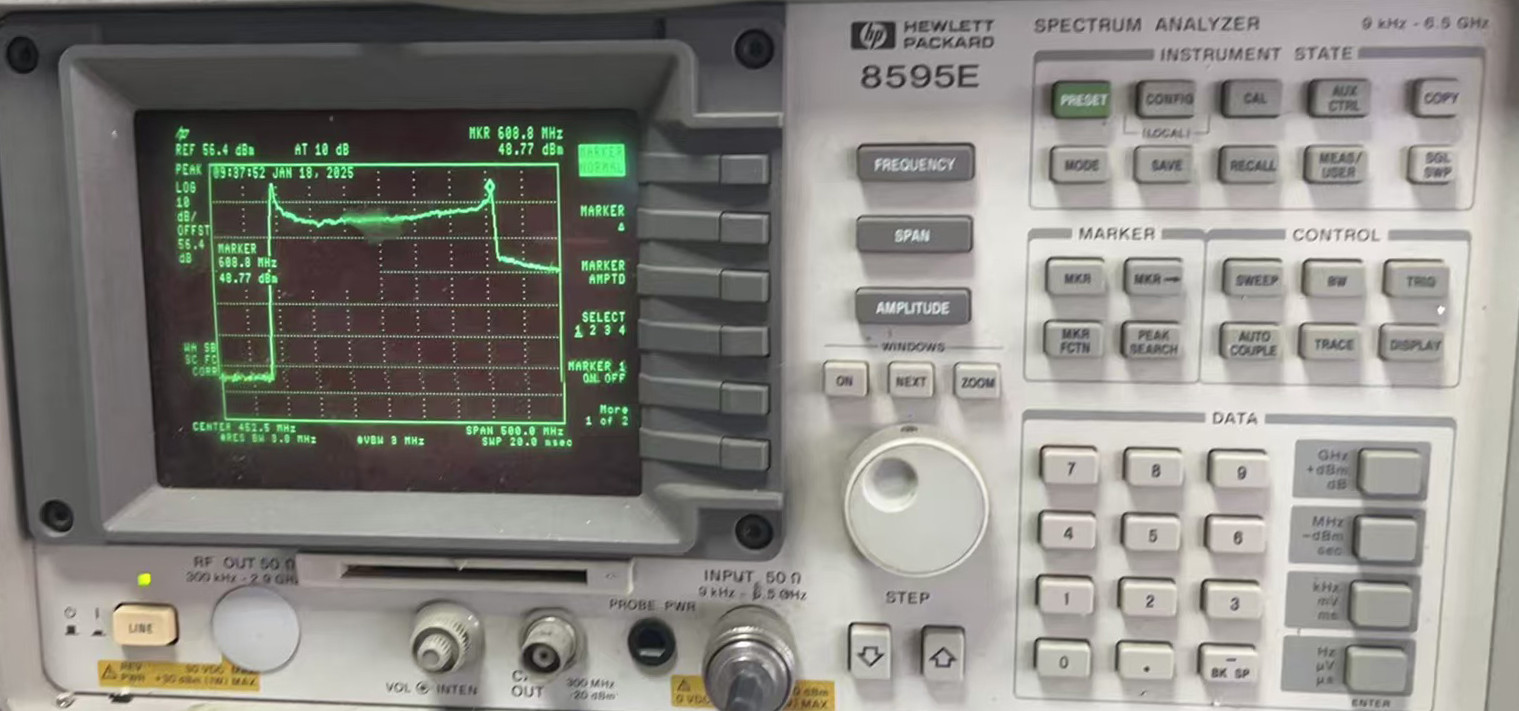

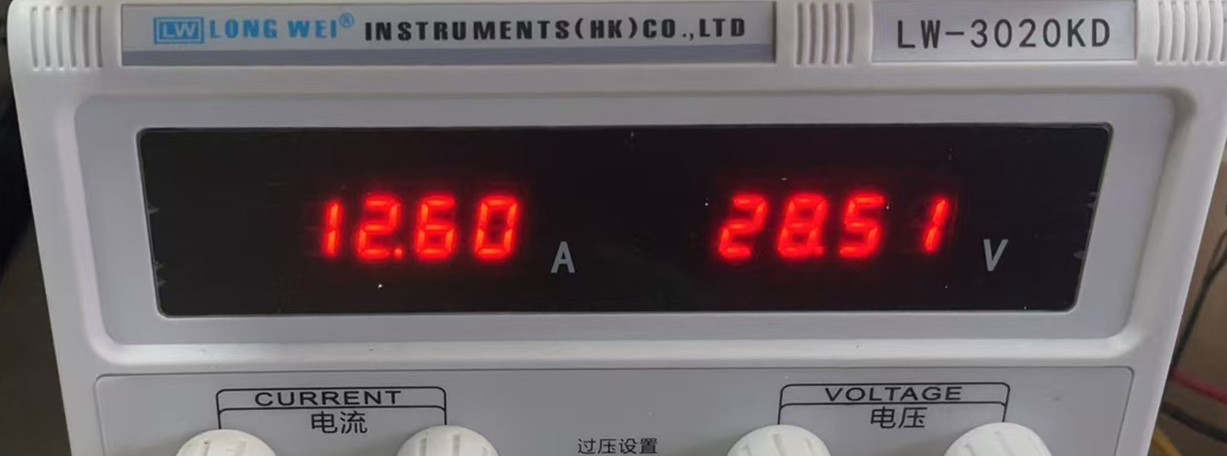

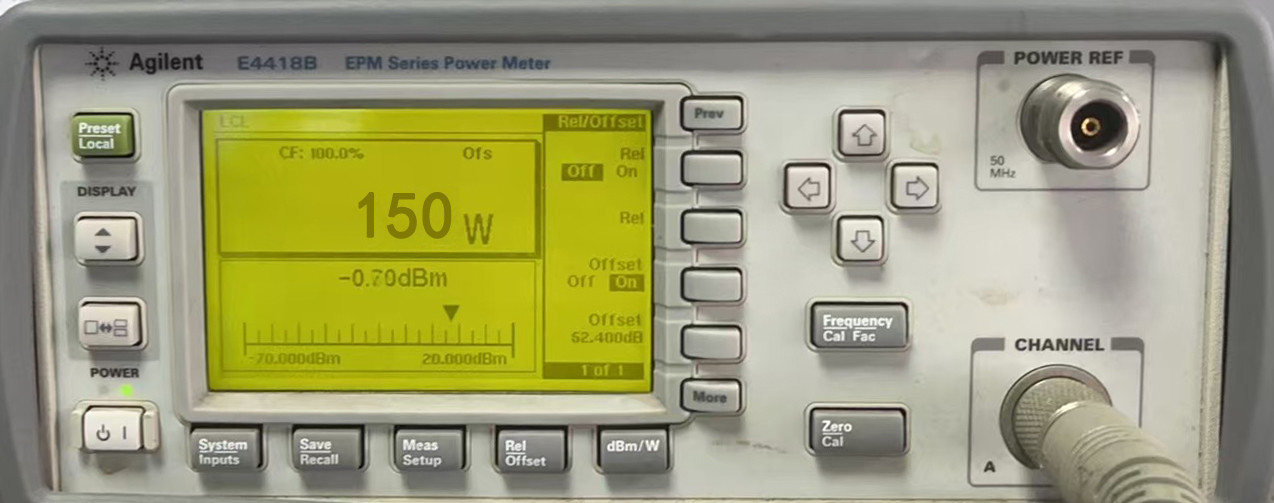

Spectrum data


Fpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation Protector

Fpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation Protector

Fpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation Protector


Fpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation Protector
Fpv Anti Drone Module Jammer 150W 5.2g Antidrone Drone Signal Jamming Module With GAN And Isolation Protector

For more details,Please don't hesitate to send us your inquiry.
