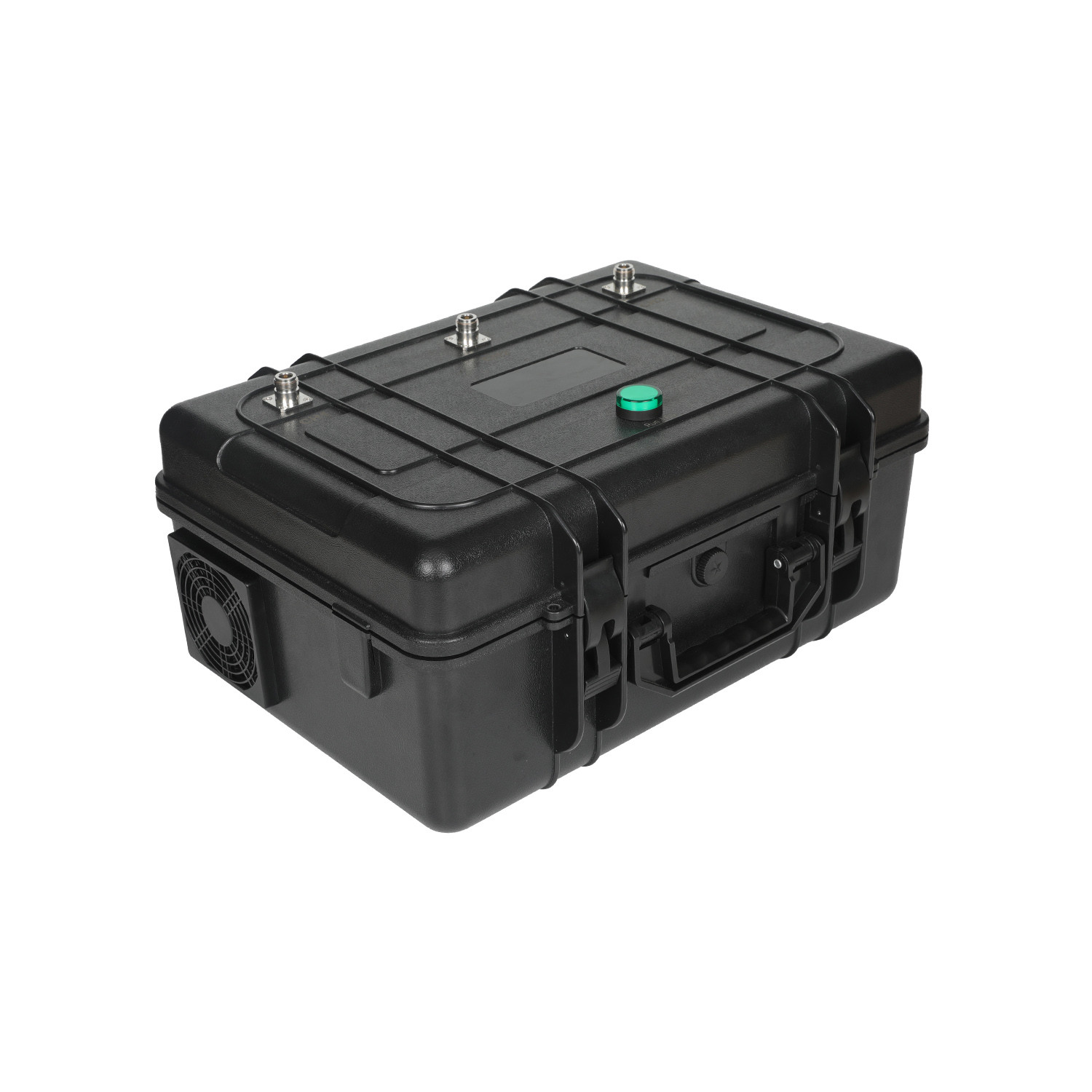

3 antennas 150W powerful briefcase design signal jammer blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals, with a coverage range

Brand Name : OEM/ODM

Model Number : JYT-GRB330

Certification : CE

Place of Origin : China

MOQ : 1Pc

Price : negotiate

Payment Terms : Paypal.T/T, Western Union

Supply Ability : 5000pcs/month

Jammming Range : 150 Meters

Antenna : External, removable

Dimension : 450×305×210 mm

Battery : Built-in rechargeable battery

Frequency Range : Customizable from 20-6000mhz

Type : Portable

Working Time : 90 Minutes

Block Radius : 150Meters@-75dbm

Antennas Type : High gain antenna +3dbi.

Color : Black

Contact Now

3 antennas powerful briefcase design signal jammer blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals, with a coverage range of up to 150 meters.

3 antennas 150W powerful briefcase design signal jammer blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals, with a coverage range

This high-power jammer is the latest design of Jinyatong Technology. Which has an output power of up to 50W per channel and blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals frequencies, designed to meet your target of most general types of mobile phone frequencies.With high power therefore large jamming coverage of the product up to 150 meters.

Specifications
Output Power:Total 150W,50W/band.
Jam Radius:150meters.
Power Supply:DC12V IN
Cooling System: Inside integrated design of anti-oxidation aluminum alloy shell and heat sink. Outside 2 high-speed silent fans.
Working Time:90 minutes
Net weight: (with antenna) 18.44KGS
Host size: 45*30.5*21cm (without antenna)
Antenna Size:600mm

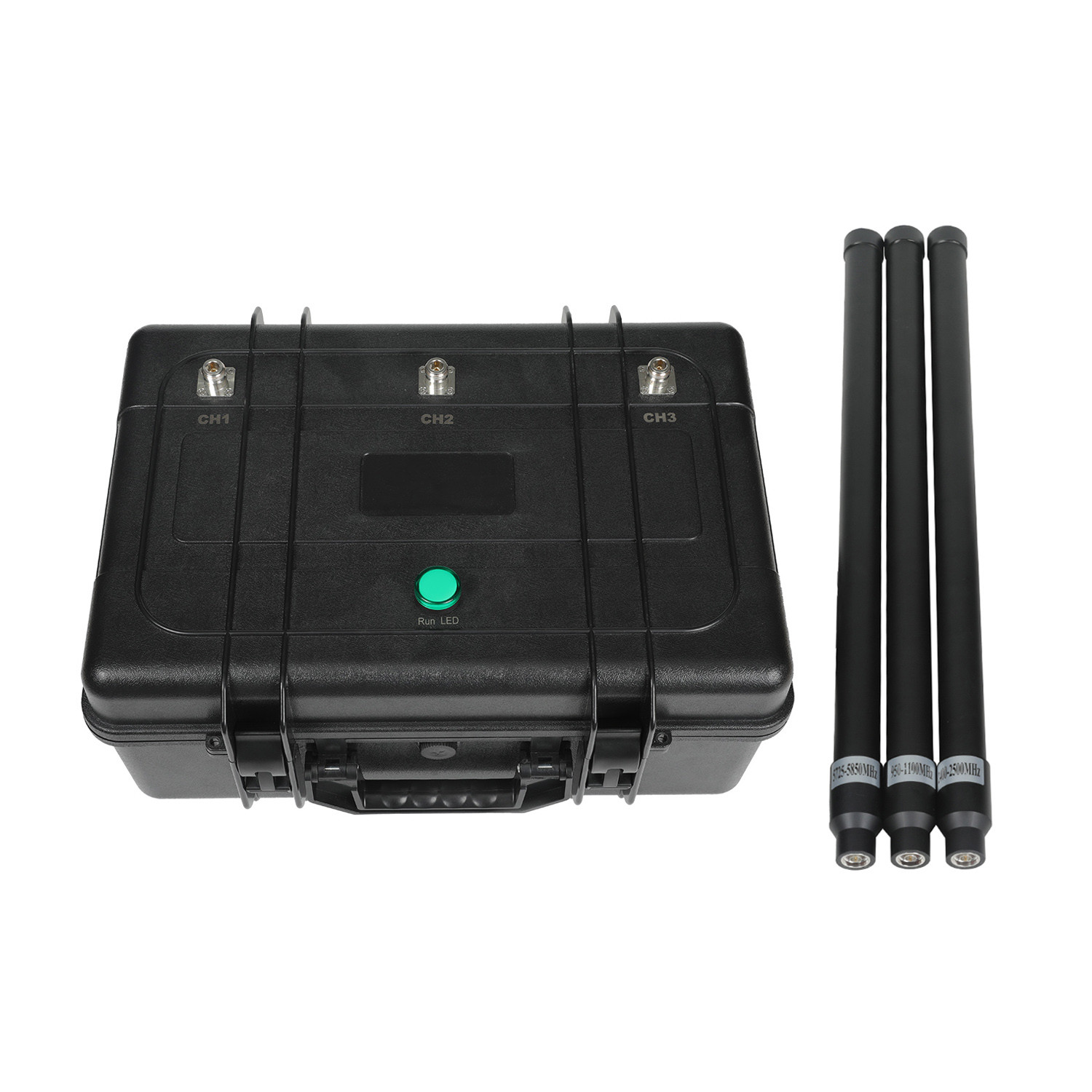

Cover interface standards:

CH1 2400-2500MHz 50W
CH2 850-950MHz 50W
CH3 5725-5850MHz 50W

We can also customize the frequencies according to different requirements,Please feel free to contact us anytime!

Feature and Advantage:
1. Large coverage, Covers all 2400-25000MHz,850-950MHz,5725-5850MHz signals, and the interference range is up to 150 meters.
2. High-power signals jammer, with output power up to 50W per channel.
3. Good cooling system: Inside adopts an integrated design of anti-oxidation aluminum alloy shell and heat sink. Outside 2 high-speed silent fans on the host to ensure the stable operation of the jammer.
4. Electric Filed (SAR): Compatible with ICNIRP Standards (Human safe)
5. Slow start circuit design effectively avoids sparks during startup.
6. It uses high-performance integrated circuits and patch components, and apply imported patch machines and reflow soldering machines for processing and casting production, for the stable quality and performance.
7. Adops high gain antenna +3dbi.
9. Equipped with a built-in, high-capacity battery, the device can operate for more than 90 minutes and is designed to support repeated charging .
10. Total output power: 150W

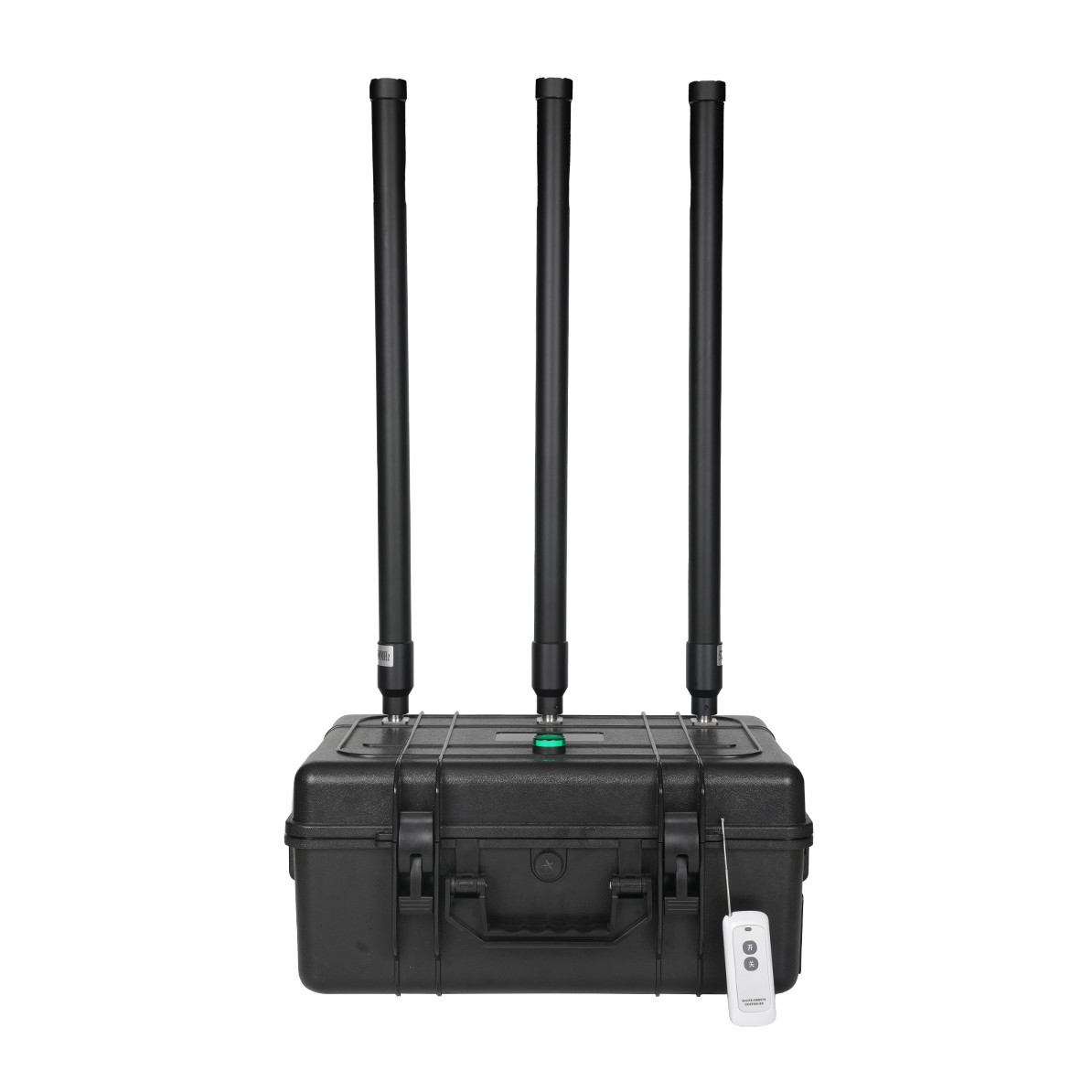

11.Equipped with remote control to power on or off the device.

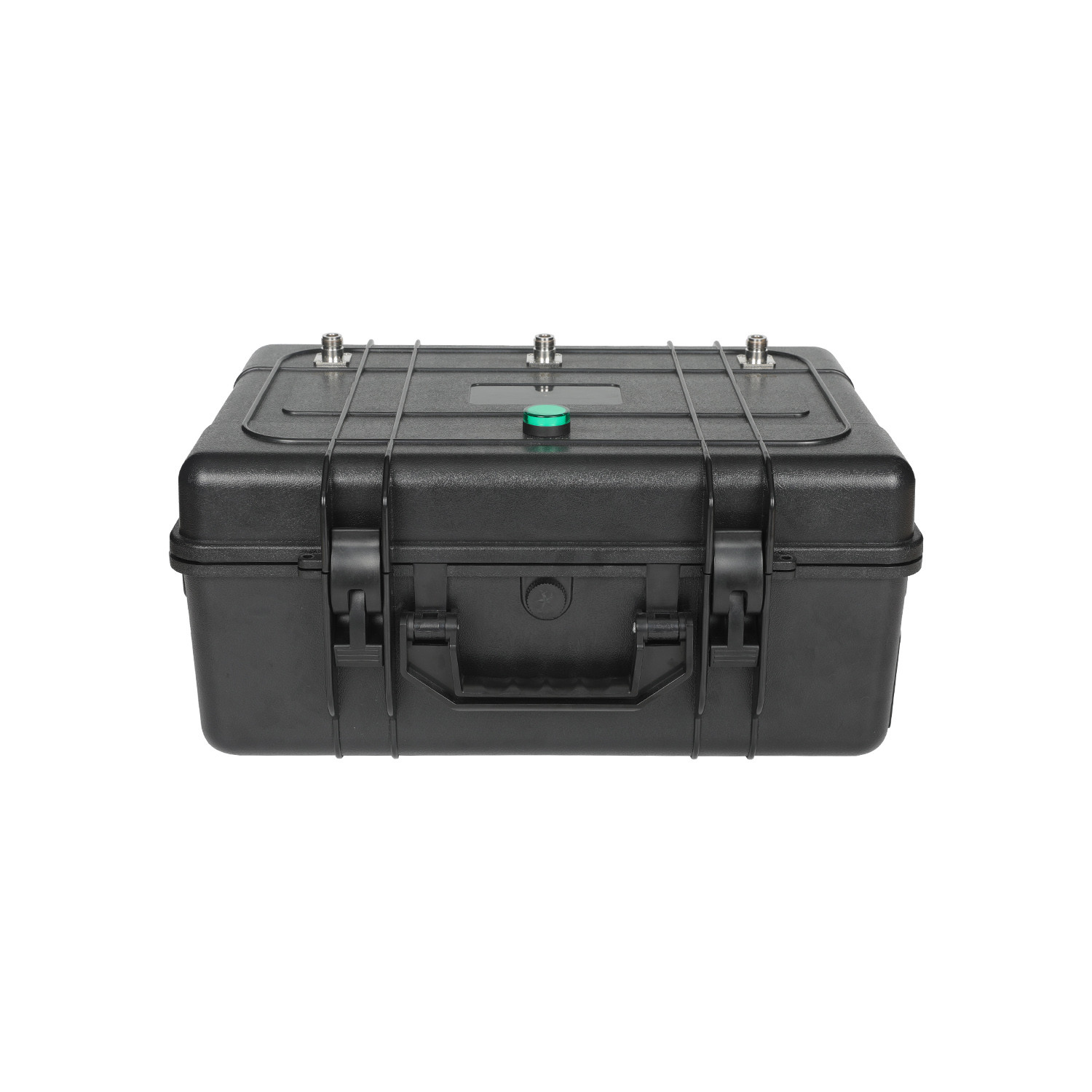

12. The suitcase appearance design makes the device easy to carry.
13. Can be used in the cars.

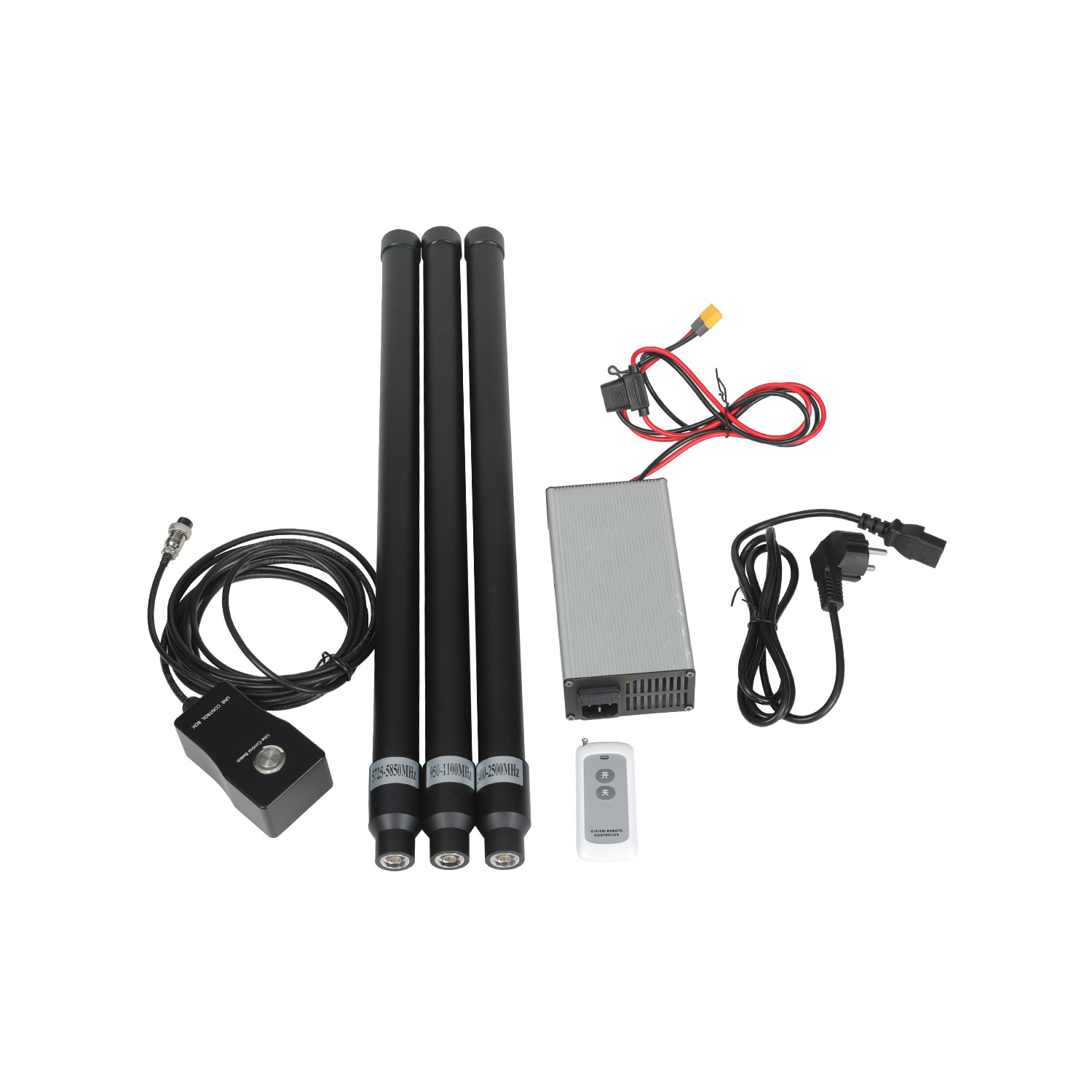

Accessories::
Host * 1
Antennas* 3
Line control box* 1
DC12V IN Battery Cable* 1
Remote control* 1

Application:

1.It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more;
2.For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.

Warranty: one year from delivery date.

3 antennas 150W powerful briefcase design signal jammer blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals, with a coverage range

3 antennas 150W powerful briefcase design signal jammer blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals, with a coverage range

3 antennas 150W powerful briefcase design signal jammer blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals, with a coverage range

3 antennas 150W powerful briefcase design signal jammer blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals, with a coverage range

3 antennas 150W powerful briefcase design signal jammer blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals, with a coverage range

3 antennas 150W powerful briefcase design signal jammer blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals, with a coverage range

3 antennas 150W powerful briefcase design signal jammer blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals, with a coverage range3 antennas 150W powerful briefcase design signal jammer blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals, with a coverage range

3 antennas 150W powerful briefcase design signal jammer blocks 2400-2500MHz,850-950MHz, 5725-5850MHz etc,. customizable signals, with a coverage range

For more details,please do not hesitate to send us an enquiry.
