50W 700-850MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding with GaN and Isolation Protector

Brand Name : OEM/ODM

Model Number : JYT-M700-50

Certification : CE

Place of Origin : China

MOQ : 1Pc

Price : Negotiate

Payment Terms : T/T

Delivery Time : 1-3 working days after payment received

Packaging Details : Neutral Package

Contact Now

Product Description

Product Parameters

50W 700-850MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding with GaN and Isolation Protector

Main Components :

1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

4, Tube Voltage 5, Adjustable SIMOS Voltage 6, SIMOS Voltage

1.RF Data

Item Spec. Remarks
Frequency Range(MHz) 700-850 Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Analog sweeping speed 250KHz
Output Power (Max) ≥47dBm 50W
Gain (Max) 47±1 dB
Ripple in Band ≤ 3 dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Yes 24-28V
Output VSWR ≤1.5
Working current@+28V dc ≤4.2A
High LowTemperature test Working Temperature -20~＋65℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Power supply Port Positive and negative lines 24-28V; GND
Center adjustment SMA-Female
LED indicator light Power ON/OFF
Dimension 117*40*18 mm
Screw Size 4-Ø3.20 mm
Weight 180g

​

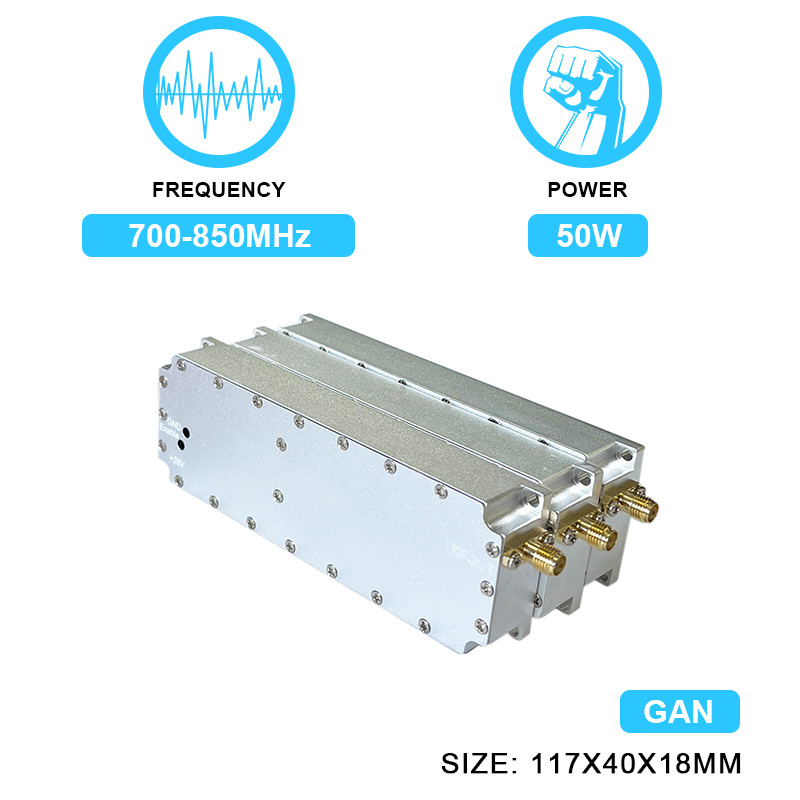

2.Size

50W 700-850MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding with GaN and Isolation Protector

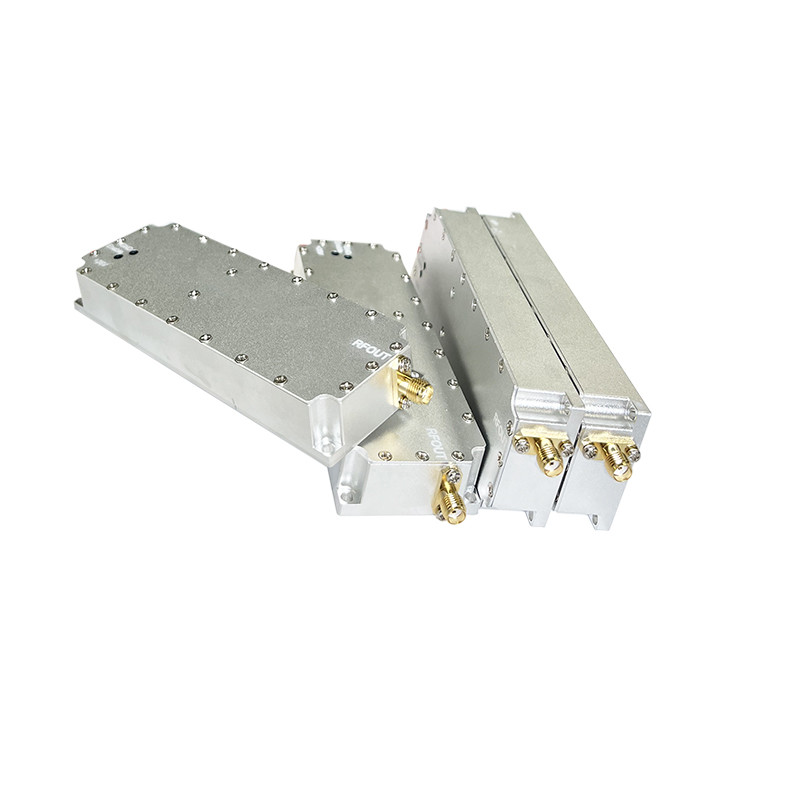

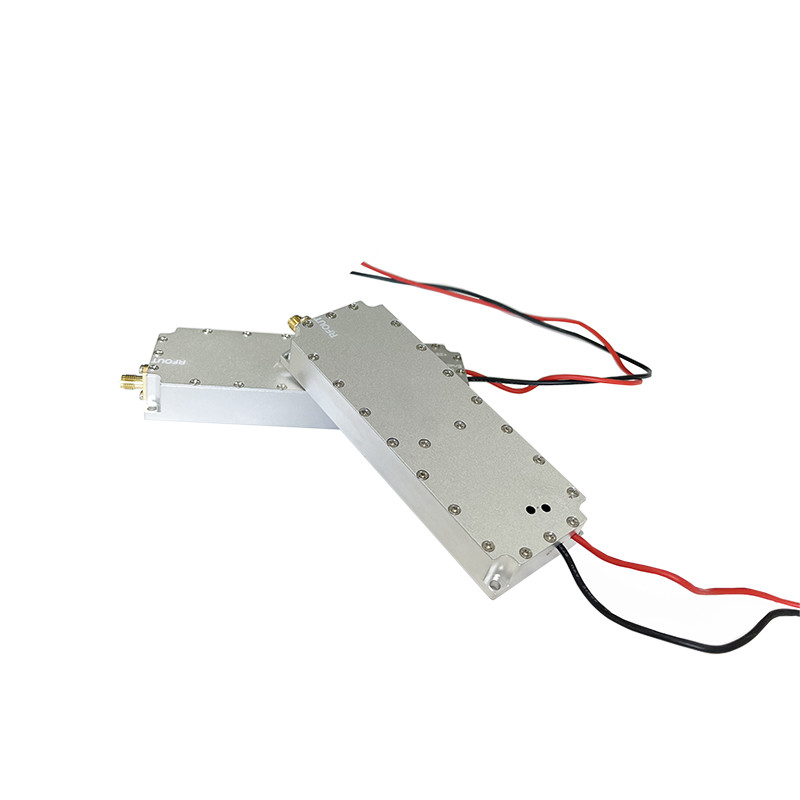

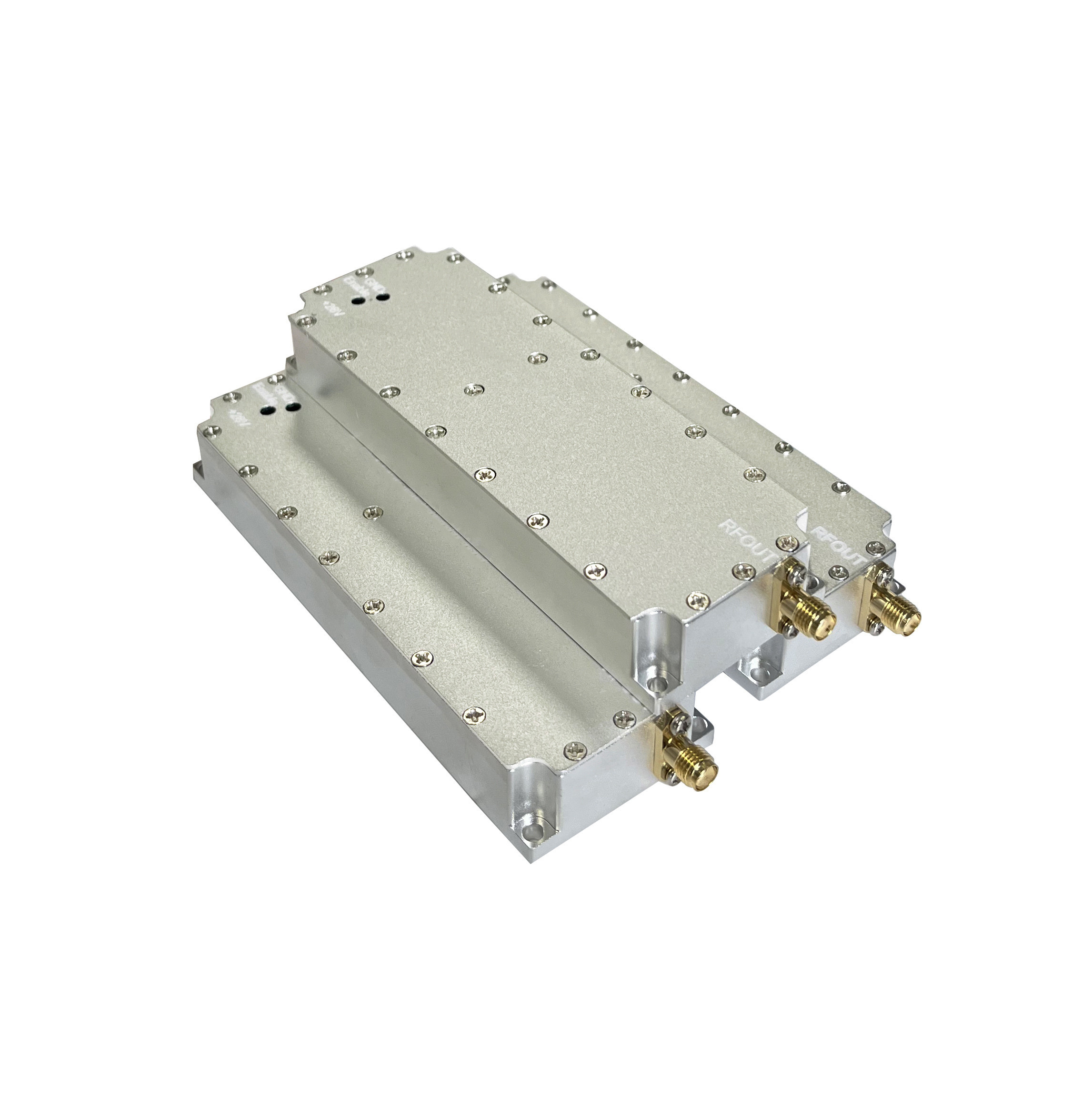

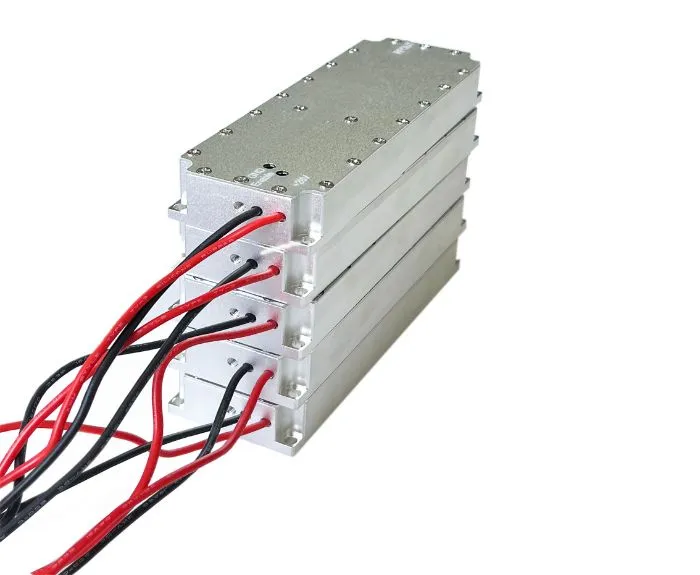

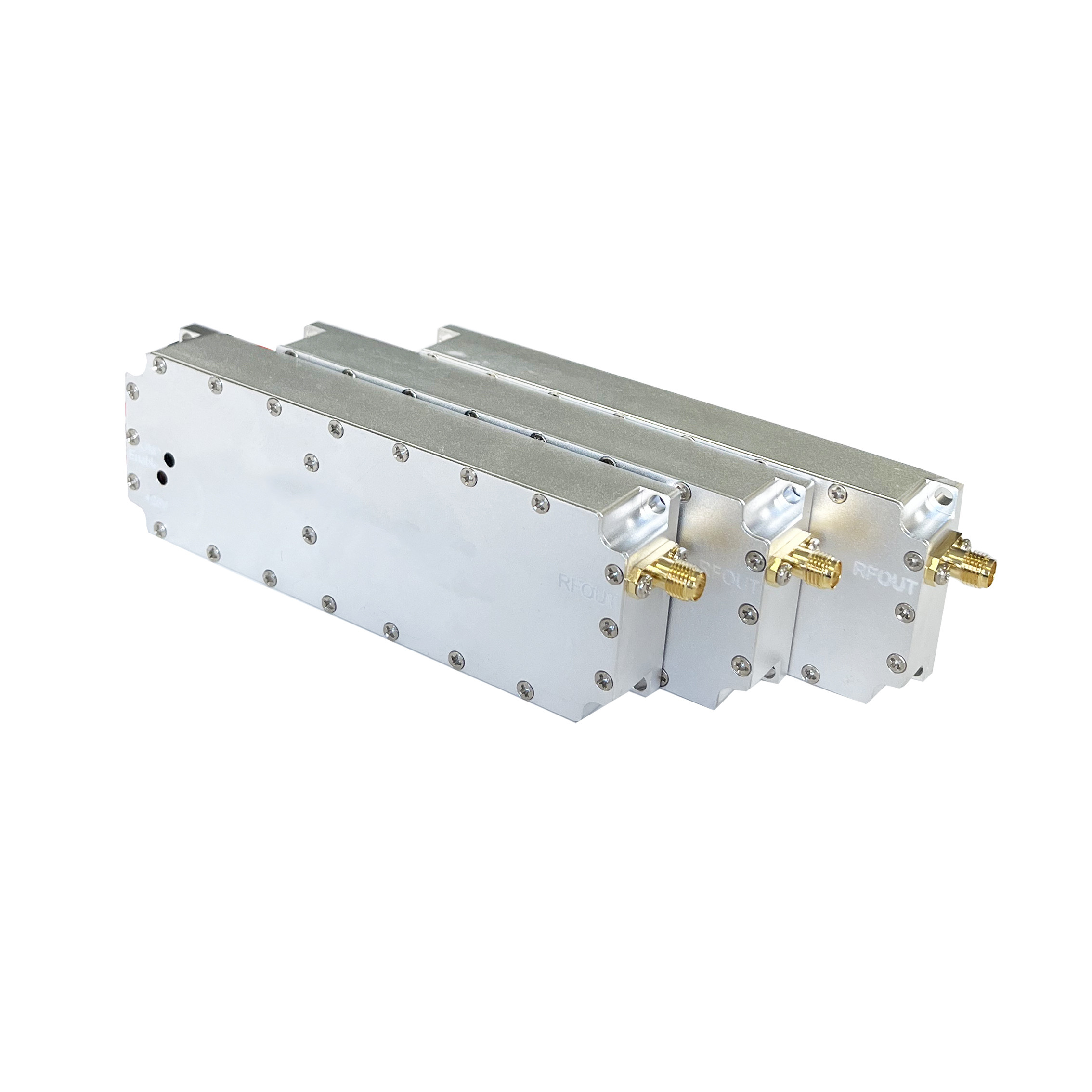

Detailed Photos


50W 700-850MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding with GaN and Isolation Protector50W 700-850MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding with GaN and Isolation Protector50W 700-850MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding with GaN and Isolation Protector50W 700-850MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding with GaN and Isolation Protector50W 700-850MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding with GaN and Isolation Protector

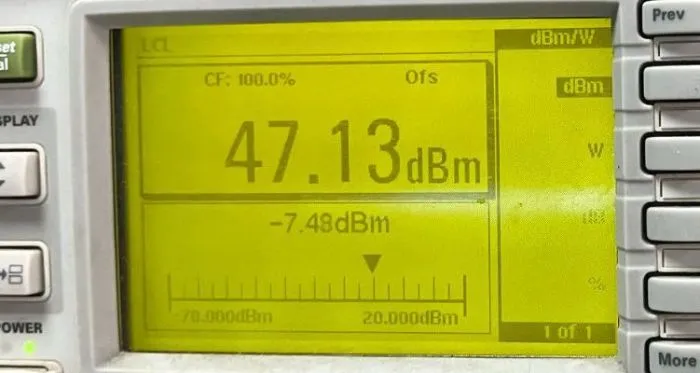

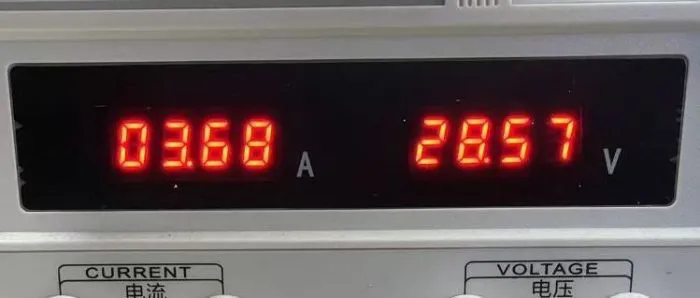

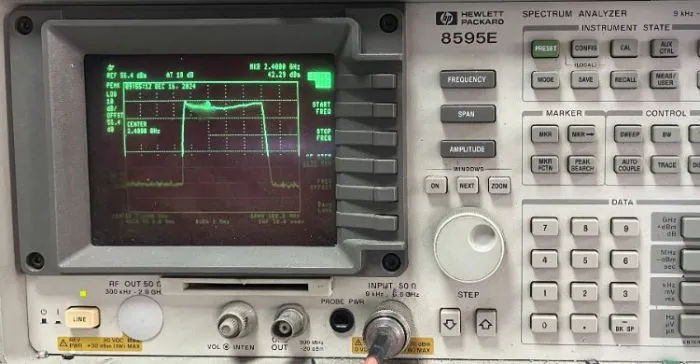

Spectrum data


50W 700-850MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding with GaN and Isolation Protector
50W 700-850MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding with GaN and Isolation Protector
50W 700-850MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding with GaN and Isolation Protector
50W 700-850MHz Anti Drone Signal Jammer Module System GPS Blocker GaN Fpv Uav Shielding with GaN and Isolation Protector
