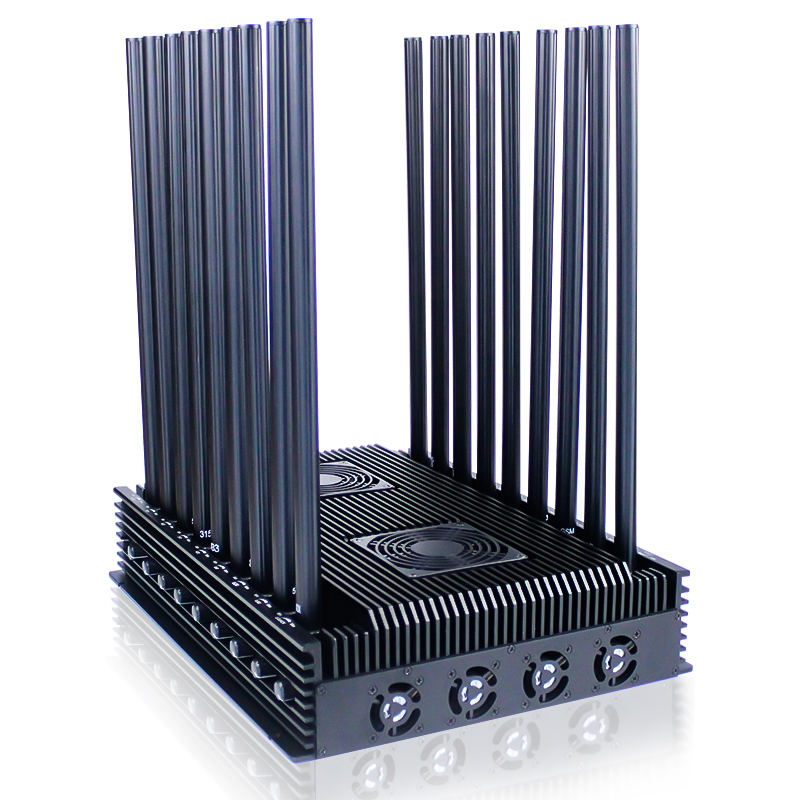

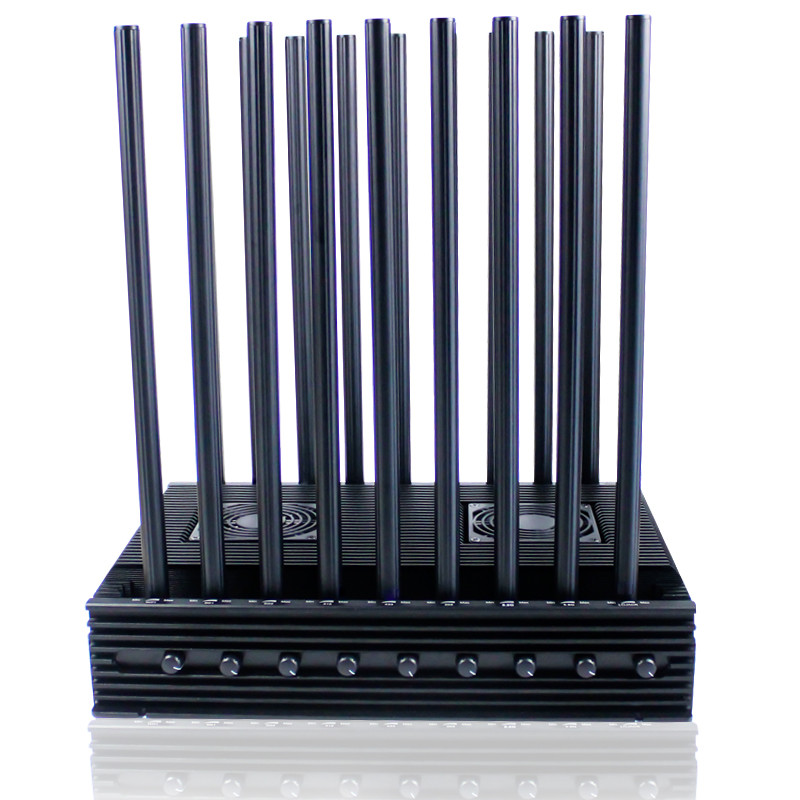

18 Antennas 2G 3G 4G 5G GPS WIFI RF LOJACK Signals Jammer with 6-10W output power per band and 6-7dbi Omni-directional antennas
JYT-1810 is a 18-antenna multi-functional all in one signal jammer with high output power of total 142W, which brings us powerful interference capabilities. It can cut off not only all 2G 3G 4G 5G mobile phone signals, but also interfere with 5.8GWIFI, 5.2G WIFI, WIFI, GPSL1, RF315, RF433, RF868, Lojack, GPS2-L5, GPS3-L4 signals, This cell phone jammer meets your blocking needs for the most common affected frequency types,Shielding range up to 100 meters.
Feature :
1.18 channel design.
2.High output power ,6-10W per band. Total up to: 142W.
3.jamming range up to 100 meters (Depends on the signal strength in a given area).
4.stronger and longer External high gain 6-7dbi Omni-directional antennas (All the TX frequency covered down link only.)

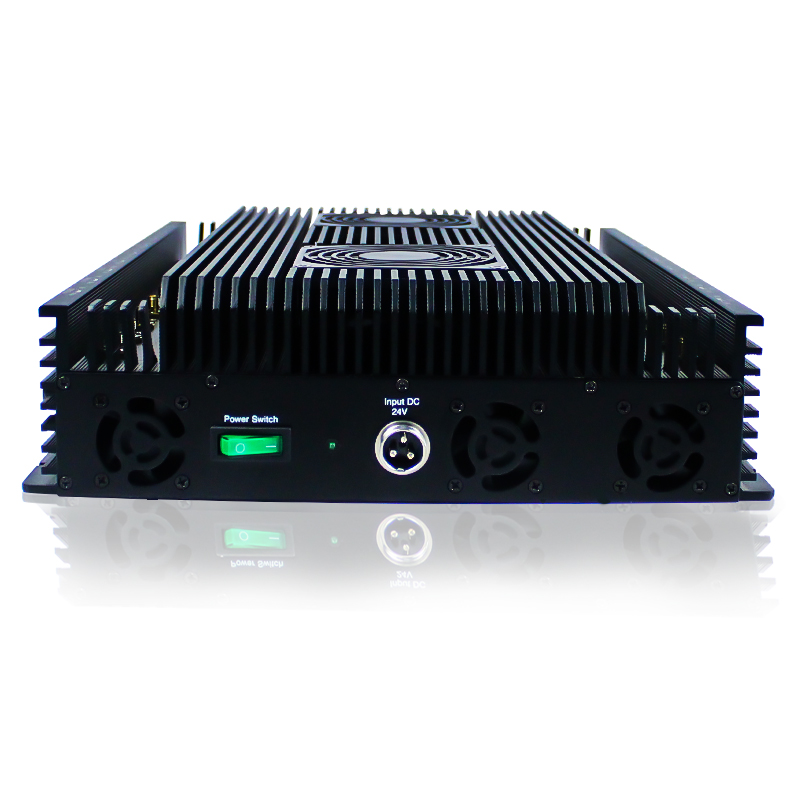

5.Build-in AC110-240V to 24V adapter, Safe and easy to use.

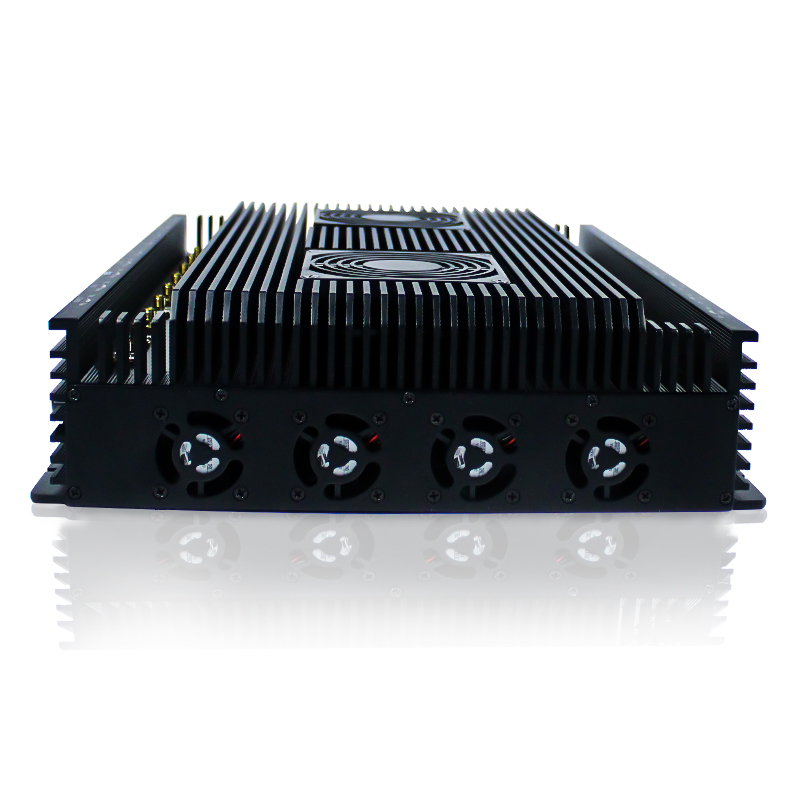

6.Built-in 8 temperature-controlled fans provide good heat dissipation and work non-stopped.
7.Support the adjust or turn off of any single band without influencing the other bands's operation.
8.With remote control, can be switched remotely.
9.Low noise.
10.This product is great for school classes to avoid cheating on exams and for oil/gas stations to stay safe.
Note:If you want to use this device in cars, please use a DC12V/24V to AC110-240V inverter with power ≥260 watts.
Jamming frequencies
1.CDMA 800:850-894MHz 10W
2.GSM 900:925-960MHz 10W
3.DCS: 1805-1990MHz 10W
4.LOJACK:165-174Mhz 10W
5.3G :2110-2170MHz 8W
6.4GLTE:738-821MHz 10W
7.4GWimax:2620-2690MHz 8W
8.WIFI:2400-2500MHz 8W
9.5.2GWIFI :5100-5600 MHz 6W
10.5.8GWIFI :5600-5900MHz 6w
11.RF315:315MHz 6W
12.RF433:433 MHz 6W
13.RF868:868MHz 6W
14.5G1:3300-3600MHz 10W
15.5G2:3600-3800MHz 10W
16.GPSL1:1570-1580MHz 6W
17.GPSL2-L5:1170-1280MHz 6W
18.GPSL3-L4:1370-1390MHz 6W
We can also customize the frequencies according to different requirements,Please feel free to contact us anytime!
Parameters:
Total output power: 142W
Full set weight: 9.8kg
Power supply:AC 110V/220V DC 24V
Dimension: 390mm x 290mm x 90mm
Shielding radius:50-100meters @-75DBM (depends on the signal strength in the given area).
Working Time:Work non-stopped, Can work 24 hours * 7 days * 12 month.
Application area:
1.It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more.
2.For some special-purpose places, such as hospitals, gas stations, etc., please conduct on-site testing first to ensure that the normal operation of their equipment and instruments will not be interfered with.
Warranty: one year from delivery date

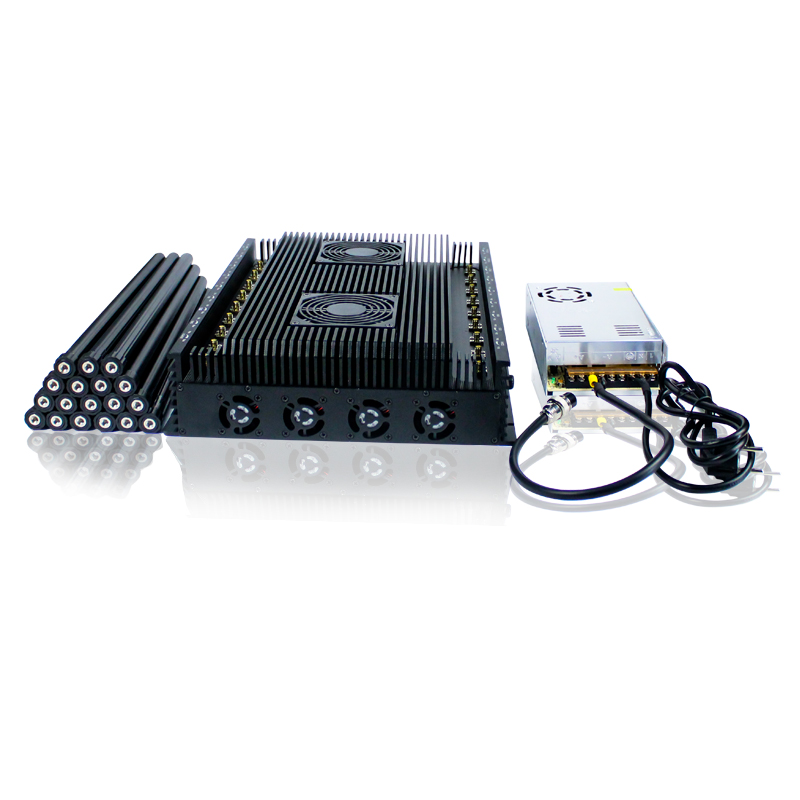

Accessories:
Host x 1pc
AC Plug x 1pc
Omni-antenna x 18pcs
For more details,please do not hesitate to send us an enquiry.
|
|
